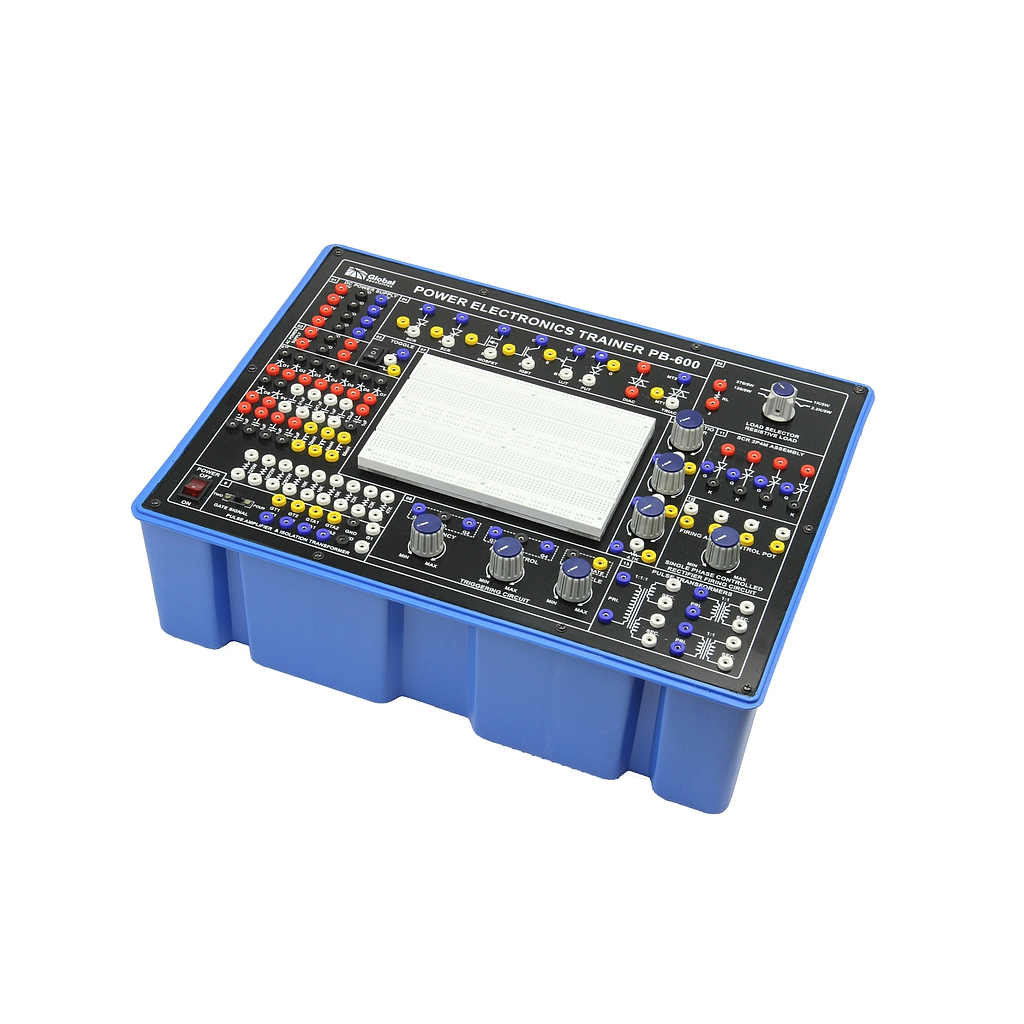

Power: 3-wire AC Input with 115 V / 230 V (Selectable)
DC Power Supply: ± 5 V at 100 mA, ± 12 V at 150 mA, ± 15 V at 50 mA & ± 35 V at 50 mA
AC Power Supply: 18 V - 0 V - 18 V at 50 mA, & 15 V - 0 V - 15 V at 50 mA
Breadboard: 1280 Tie Points and 4 Bus Strips with 100 Tie Points each, Totaling 1680 Tie Points. Size 112mm x 170mm (Approx.)
Triggering Circuit:
5 Gate Signal Output, Frequency Range: 40 Hz to 900 Hz
Variable, Amplitude: 12V PWM control of G1, G2, G3 and G4. Duty Cycle Control of “Gate” Signal is 0 to 100%
Single Phase Rectifier: Firing Angle Control 0°-180° Variable
Firing Circuit/Pulse Amplifier: Four Gate-Signal Outputs with Isolation Transformer
SCR Assembly: 2P4M (4 pieces) 600 V, 2 A
Power Devices: IGBT-G4BC20S; MOSFET-IRF540; UJT-2N2646,
DIAC-DB3; TRIAC-BT136; PUT-2N6027; SCR-TYN612/02
Circuit Components
Capacitor: 0.01 uF, 0.047 uF, 0.1u F, 0.33 uF, 1 uF/63 V (4 pieces), 2.2uF / 50 V
Diode: IN4007 (8 pieces), Zener Diode 9 V
Inductor: 10 mH, 68 mH (2 pieces)
Resistor: 22 Ω/5 W, 100 Ω/2 W, 220Ω/2 W, 10k Ω (3 pieces), 22 kΩ, , 47 kΩ
Potentiometer: 4.7 kΩ (2 pieces), 1 MΩ
Power Resistors: 120 Ω, 270 Ω, 1 kΩ, 2.2 kΩ, (each 5 W)
Rocker Switch: Single Pole Double Throw (SPDT)
Pulse Transformer: 1:1 (2 pieces), 1:1:1
Dimensions: 16.3" x 4.7" x 12.3" (W x H x D)
Weight 9.25 lbs
Included Accessories: PB-2 Breadboard, PB-600KIT Power Electronics Component Kit , WK-3 Jumper Wire Kit (70 pc), Patch Cords (36 pc), Power Cord
