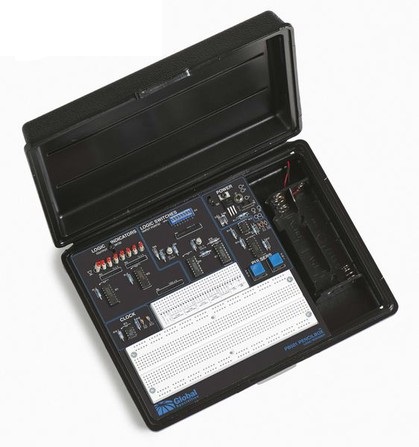

Logic Switches/Input Ports
Dual function: 8 switches buffered by two 4 bit tri-state buffers with separate enables
Logic "1" output current 2.6 mA max @ 2.4 V min
Logic "0" output current 24 mA max @ 0.5 V max
Logic "1" enables input current: 400 µA @ 5 VDC
Logic "0" enables input current: 20 µA @ 0.2 V
Logic Indicators
Dual function: 8 LEDs driven by two 4-bit latches with separate enables
Output Ports Logic "1" input current: 50 µA @ 5 VDC
Logic "0" input current: None required
Connectors: All functions are permanently connected to a solderless tie-point connector. Each tie-point has 5 solderless connection points. Power and ground have 15 connection points each. All tie-points are labeled
Breadboarding: One UBS-100 solderless breadboarding socket is permanently attached to the unit. The UBS-100 can accomodate up to eight 14-pin DIP ICs with 4 tie-points per pin, plus eight power rails with 25 tie-points each, total 840 tie-points
Overall Dimensions: 2.56 in H x 7.5 in W x 10 in D
Power: 4 "C" batteries (not included). Optional 9 VDC battery adapter (LD-1-PB-501)
Weight: 1 lb 6 oz (less batteries and adapter)
