Global PB-500 Portable Analog Circuit Trainer | EMIN.CO.TH

Training analog/digital device
Global PB-500 Portable Analog Circuit Trainer

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

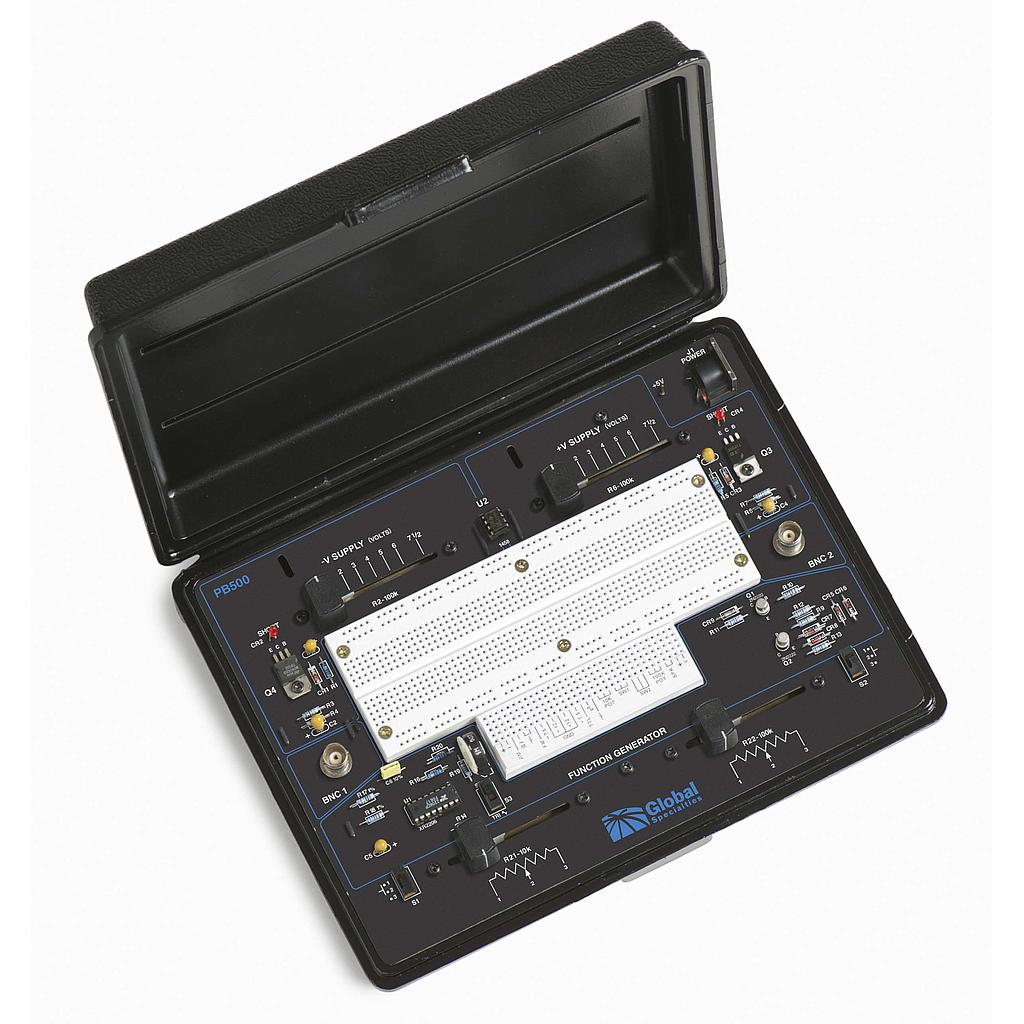

Product image

Global PB-500 Portable Analog Circuit Trainer

ManufacturerGlobal Specialties(View more products from this manufacturer)

ModelPB-500

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Power Supplies

Fixed ±12 VDC @ 200 mA

Variable 0 to ±7.5 VDC @ 50 mA

Frequency

User variable by external capacitor (0.1 Hz to 100 kHz)

User FM control line

Duty Cycle

50% of all waveforms

Amplitudes (Typical)

Sine: 4 Vpp, 10 kΩ load

Triangle: 9 Vpp, 10 kΩ load

Square: 8 Vpp, 10 kΩ load

Signal Connections

All signals and functions connected to a solderless interconnect socket which has 5 tie-points available for each signal

Weight

1 lb 12 oz including AC power adapter

Overall Dimensions

2.56 in H x 7.5 in W x 10 in D
