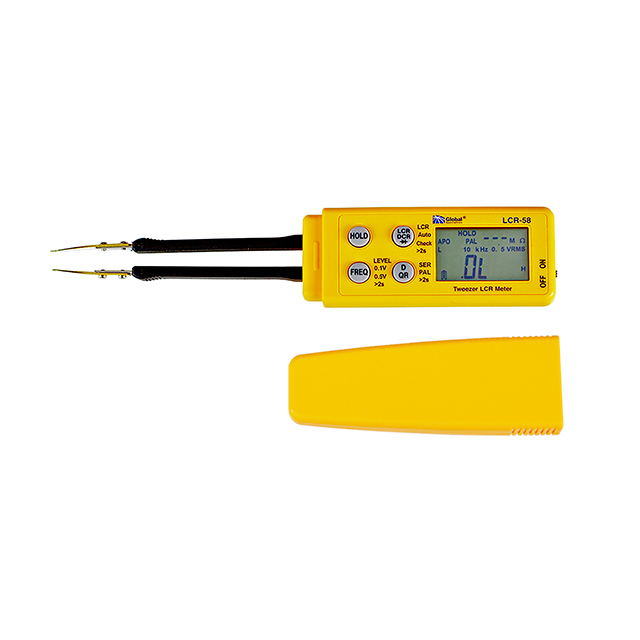

GLOBAL LCR-58 Tweezer LCR Meter

Test frequency: 100/120 Hz, 1 kHz, 10 kHz

Test signal level: 0.5 Vrms

Basic accuracy: 1 - 3% + 5 dgts

Resistance range (resolution): 60 Ω - 20 M Ω (0.01 Ω)

Capacitance range (resolution): 600 pF - 6 mF (0.1 pF)

Inductance range (resolution): 60 µH - 200 H (0.1 µH)

Display: 6000 count LED

Sampling rate: 2 samples per second, nominal

Auto power off: Approx. 30 minutes

Operating environment: 0ºC - 40ºC (32ºF - 104ºF) at < 70% R.H.

Storage environment: -20ºC - 60ºC (-4ºF - 140ºF) at < 80% R.H. with battery removed from meter

Power: 3.0 V button-type lithium battery ×2, CR2032

Battery life: 50 hours continuous operation

Size: 205mm(H) × 40 mm(W) ×24.5mm(D)

Weight: Approx. 3.9 oz ( 110g ) including battery
