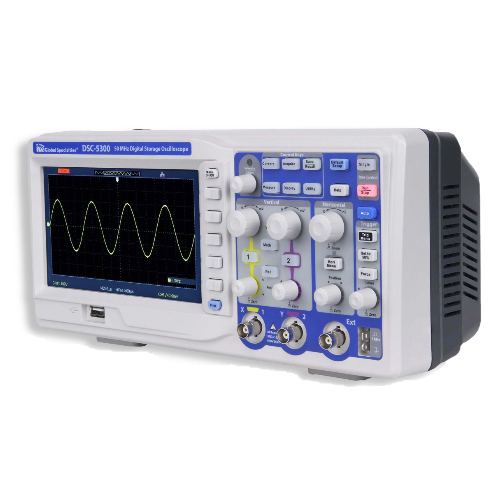

GLOBAL DSC-5300 50 MHz Digital Storage Oscilloscope

Display Mode: Color TFT 7.0in.(177.8mm)diagonal; Liquid Crystal Display

Resolution: 480 horizontal by 234 vertical pixels

Display Color: 24bit

Display Contrast （Typical state）: 150:1

Backlight Intensity（Typical state）: 300nit

Wave display range: 8 x 18 div

Wave Display Mode: Dots, Vector

Menu Display: 2 sec, 5 sec, 10 sec, 20 sec, Infinite

Screen-Saver: Off,1min,2min,5min,10min,15min, 30min, 1hour, 2hour, 5hour

Waveform interpolation: Sin(x)/xl linear

Color model: Normal, Invert

Temperature Operating:10℃ to +40℃

Humidity Operating: 85%RH, 40℃, 24 hours

Input Voltage: 100-240 VAC, CAT II, Auto selection

Frequency Scope: 45Hz to 440Hz

Power: 50VA Max

Dimension (WxLxH): 135.6 x 323.1 x157 mm

Weight: 2.5 kg
