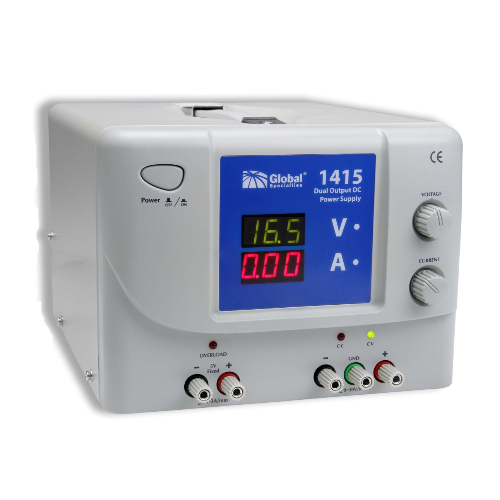

GLOBAL 1415 Dual Output DC Power Supply

Output Parameters:

+ Max Output Power: 105 W

+ Number of Outputs: 2 independent & electrically isolated outputs

+ Range: Variable: 0-30 VDC / 0-3 A

Fixed: 5 V / 3 A

Load Regulation:

+ CC Mode: <15 mA

+ CV Mode: ±0.05% + 32 mV

+ Fixed 5 V Output: <70 mV

Line Regulation:

+ CC Mode: ±0.05% + 2 mA

+ CV Mode: ±0.05% + 2 mV

+ Fixed 5 V Output: <5 mV

Ripple & Noise:

+ CC Mode: <2.5 mArms

+ CV Mode: <0.4 mVrms

+ Fixed 5 V Output: <1.5 mVrms

Display Accuracy:

+ Voltage & Current: 0.1% + 2 digits

+ Fixed 5 V Output: ± 0.25 V

Gerneral

+ AC Input: VAC 115/230 ± 10%, 50/60 Hz

+ Operating Temperature: 50°F to 104°F (10°C to 40°C)

+ Operating Humidity: 90% R.H.

+ Dimensions (W x H x D): 9 x 6.7 x 12.2 in (230 x 170 x 310 mm)

+ Weight: 13.3 Ibs (6.0 kg)
