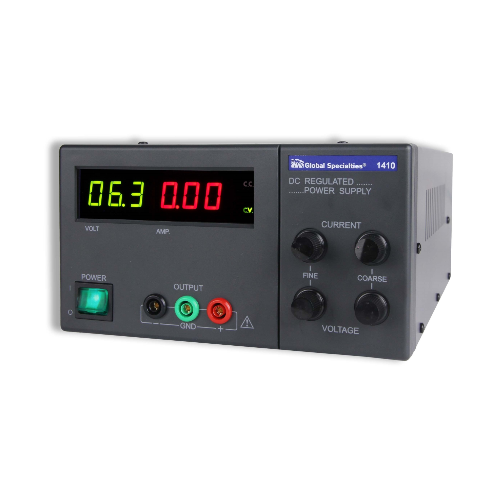

GLOBAL 1410 90W DC Power Supply

Output Voltage: 0–30 V

Output Current: 3 A

CONSTANT VOLTAGE CHARACTERISTICS

+ Load regulation (0-100%): 0.02% +3 mV

+ Line regulation ( ± 6% ): 0.02% +3 mV

+ Ripple and noise r.m.s: 1 mV

CONSTANT CURRENT CHARACTERISTICS

+ Load regulation (0-100%): 0.02% +3 mA

+ Line regulation ( ± 6% ): 0.02% +3 mA

OUTPUT

+ Output terminals ( color ): ( + ) Red, ( – ) Black, (GND) Green

+ Ground proof voltage: ±180 V

Voltmeter: 3 digits

Ammeter; 3 digits

Serial connection ( independent control mode ): Can be connected in series (within limits of ground proof voltage)

Parallel operation ( master – slave mode ): Can be operated in “one-control” parallel configuration (only same model)

INPUT VOLTAGE

+ Voltage, Frequency: 120/240 VAC, 50/60 Hz; Switchable

+ Operating ambient temperature: 5–40°C; 10–80% R.H.

Dimensions ( W x H x D ): 205 x 115 x 270 ( mm )

Weight: Approximate 7.4 kg
