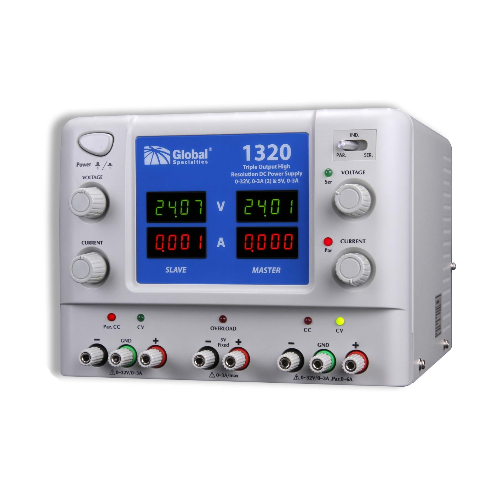

GLOBAL 1320 Triple Output High Resolution DC Power Supply

AC Input: VAC 120/240 ±10%, 50/60 Hz ± 10%

Operating Temperature: 50°F to 104°F (10°C to 40°C)

Operating Humidity: 90% R.H.

Temperature Coefficient: <3 PPM /°C (voltage and current)

Max Continual Output Power: 195 VA

Dimensions (W x H x D): 230 x 170 x 310 mm

Weight: 17.6 Ibs (8.0 kg)

Included Accessories: Power cord, user manual, one pair of test leads

Number of Outputs: Three (two variable and one fixed)

Range: 0-32 VDC / 0~3 A (variable) & 5 V / 3 A (fixed)

Constant Voltage Mode:

+ Line Regulation: <0.05% + 3 mV

+ Load Regulation: <0.05% + 5 mV

+ Ripple & Noise: <0.4 mVrms

Constant Current Mode:

+ Line Regulation: <0.2% + 2 mA

+ Load Regulation: <0.2% + 3 mA

+ Ripple & Noise: <2.5 mArms
