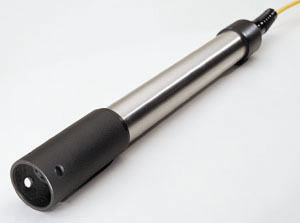

Global Water WQ401-O Online Dissolved Oxygen Sensor (25 ft cable,1" NPT PVC housing)

Output: 4-20 mA

Range: 0-100% Saturation, 0-8 ppm, temperature compensated to 77°F (25°C)

Accuracy: ±0.5% of full scale

Maximum Pressure: 40 psi

Operating Voltage: 10-36 VDC

Current Draw: 15.5 mA plus sensor output

Warm Up Time: 10 seconds minimum

Operating Temperature: -40 to +131°F (-40 to +55°C)

Membrane: 0.001 FEP Teflon (standard)

Combined Error: 2% FS

Size of Probe: 12" L x 2" Diameter (30.5 cm L x 5 cm Dia.) (end cap)

Weight: 1 lb. (454 kg)
