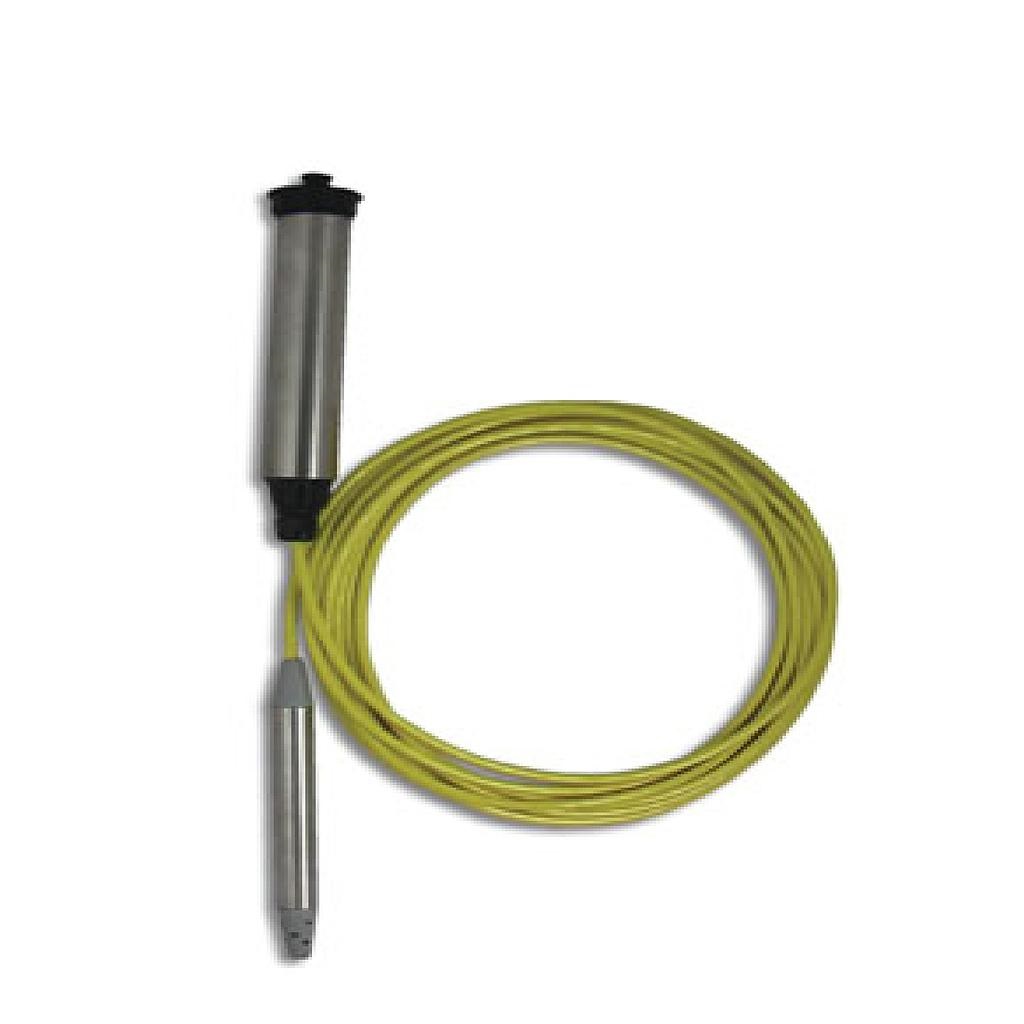

Global Water FL16U-003-XXX Water Flow Loggers

Loggers

Memory: Non-volatile flash memory

Power: Two 9VDC Alkaline Batteries

Battery Life: Up to 1 year (depending on recording intervals)

Resolution: 12 bit

Moisture Protection: Silicon coating (prevents damage to electronics from condensation)

Temperature: -40° to +185°F (-40° to +85°C)

Humidity: 0-95% non-condensing

Storage Capacity: 81,759 time and date stamped data points including battery voltage

Sample Modes: High Speed (10 samples per second), Fixed Interval (Programmable from 1 sec to >1 year), Logarithmic, Exception

Data Overwrite: Select memory wrap or unwrap (unwrap will stop logging data once memory is full)

Clock: Synchronizes to the time and date of user's computer

Clock Accuracy: 0.0025% or 1 minute in 1 month

Clock Format: Month/Day/Year Hour/Minute/Second

Enclosure: 1-7/8 inch dia x 11-1/2 inch length (fits inside a 2 inch well), stainless steel UV protected PVC vented for barometric pressure compensation

Weight: 1.6 lbs (0.7 kg) (with battery and 25 ft cable)

Communication Port:

FL16S: RS-232 4-pin circular connector

FL16U: USB Type B

Selectable Baud Rates:

9600,19200,28800,38400,57600,115200

Water Flow Logger Vented Cable

Conductors: 4 each 22 AWG

Material: Marine grade polyurethane jacket, HD polyethylene vent tube, full foil shield

Shield: Aluminum Mylar

Outside Diameter: 0.307 inch (7.8mm)

Length: Standard 25 ft (up to 500 ft from factory)

Temperature range: -22 to 185°F (-30° to 85°C)

Weight: 0.7 oz/ft (65g/m)

Water Flow Sensor

Sensor Element: Silicone Diaphragm, Wet/Wet Transducer

Level Range: 0-3 ft

Temperature Range: 32-122°F (0-50°C)

Linearity and Hysteresis: ±0.1% FS

Accuracy:

Level: ±0.1% FS at constant temperature, ±0.2% over 32° to 70°F (0° to 21.1°C) range

Temperature: Smaller of 0.5°F or ±1% of reading

Overpressure: 2 x full scale range

Burst Pressure: 10 x full scale range

Resolution: Infinite (Analog)

Output Currents:

Level: 4-20mA ±1mA of full scale

Temperature: 0-10mA ±1mA full scale

Supply Voltage: 10-36VDC

Current Draw: Combined level and temperature output currents

Warm Up Time: 3 seconds recommended

Operating Temperature: 0° (not frozen) to +185°F (-17.8° to 85°C)

Compensated Temperature Range: 32° to 70°F (0 to 21.1°C) submerged, automatic barometric compensation

Housing:

Material: 316 Stainless Steel Outer Sleeve, PVC diffuser and strain relief

Size: 9 inch long x 1 inch dia. (22.9 cm long x 2.54 cm dia.)

Weight: ~250g (9oz)
