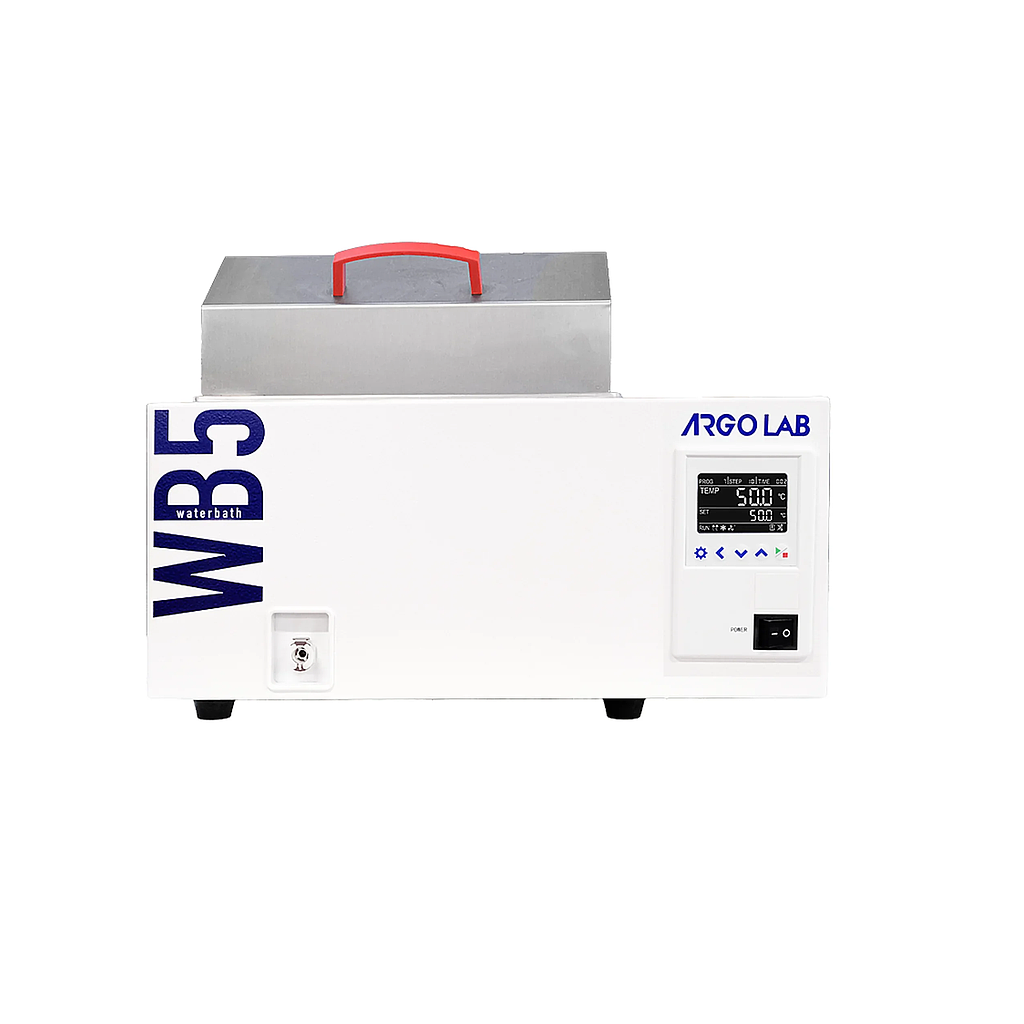

Giorgio Bormac WB 5 Waterbath (5L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN6101G-1:2010 - EN61010-2-010:2003

Performance

Temperature Range: +5 Ta ... 100 °C

Capacity: 5 L

Minimum overall height with lid fully closed: 150 mm

Temperature Resolution: 0.1 °C

Temperature fluctuation at 37 °C: ±0.1 °C

Temperature variation in space at 37 °C: ±0.2 °C

Volume: 5 L

Display: LCD

Timer: 99:59 hh:mm

Security Class (DIN 12880): 2

Circulation Type: Natural convection

Pump: No

Power: 700 W

Inner Tank Depth: 150 mm

Overtemperature Safety System: Electronic

Discharge valve: Yes

Rack capacity: 2 slot

Feeds

Frequency: 50 - 60 Hz

Power Supply: 230 V

Dimensions and weight

Weight: 8 kg

External dimension (W x D x H): 480 x 215 x 335 mm

Packaging dimension (W x D x H): 550 x 300 x 400 mm

Internal Tank dimension (W x D x H): 300 x 155 x 150 mm

Bottom Plate Dimensions: 270 x 120 mm
