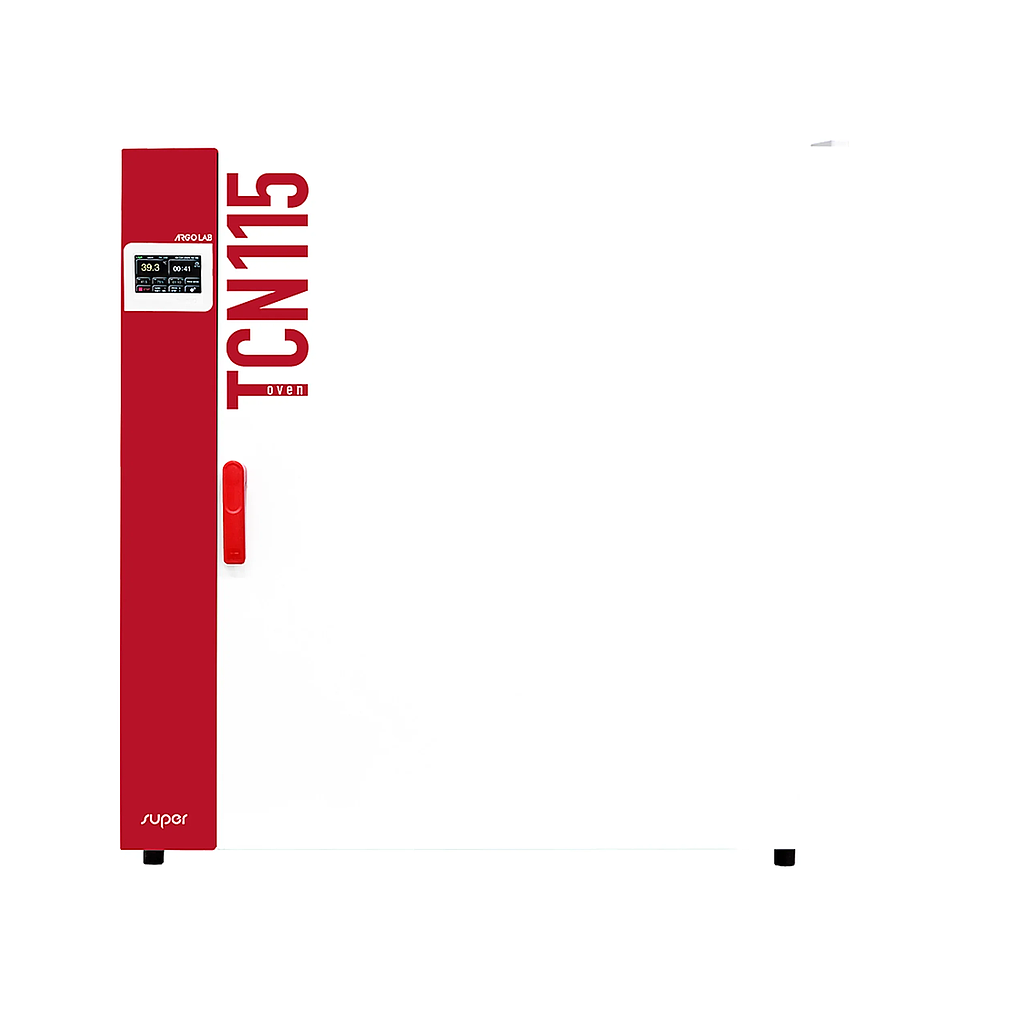

Giorgio Bormac TCN 115 SUPER Natural convection oven (115L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN61010-1:2010 - EN61010-2-010:2003

Performance

Capacity: 115 L

Temperature variation in space at 150°C: ±3.5 °C

Working temperature: +5 Ta … 300 °C

Heating time at 150°C: 18 m

Temperature fluctuation at 150°C: ±0.5 °C

Features

Maximum shelf load: 20 kg

Security class (DIN 12880): 3.1

Overtemperature safety system: electronic and electromechanical

Number of shelves: 3

Max number of shelves: 6

Programs: 8 programs with up to 8 steps each, 1 single-step program, and 1 multi-step program with up to 64 steps

Internal Data Logger: Yes

Data Export: Yes, via USB stick

Maximum internal recording capacity: 200000

Display: Touch screen

Graph display: Yes

Operation History: Yes

Alarm History: Yes

Ramp function: Yes

Multi-User Function: Yes

Door Switch: Yes

Door Alarm: Yes, 5 minutes delay

Timer: 99 : 59 hh:mm

Heating type: Natural convection

Useful volume: 115 L

Feeds

Power supply: 230 V

Frequency: 50 - 60 Hz

Absorbed power: 1900 W

Dimensions and weight

Dimensions (WxDxH): 815 x 670 x 750 mm

Internal dimensions (WxDxH): 520 x 450 x 495 mm

Minimum distance between shelves: 50 mm

Weight: 74 kg
