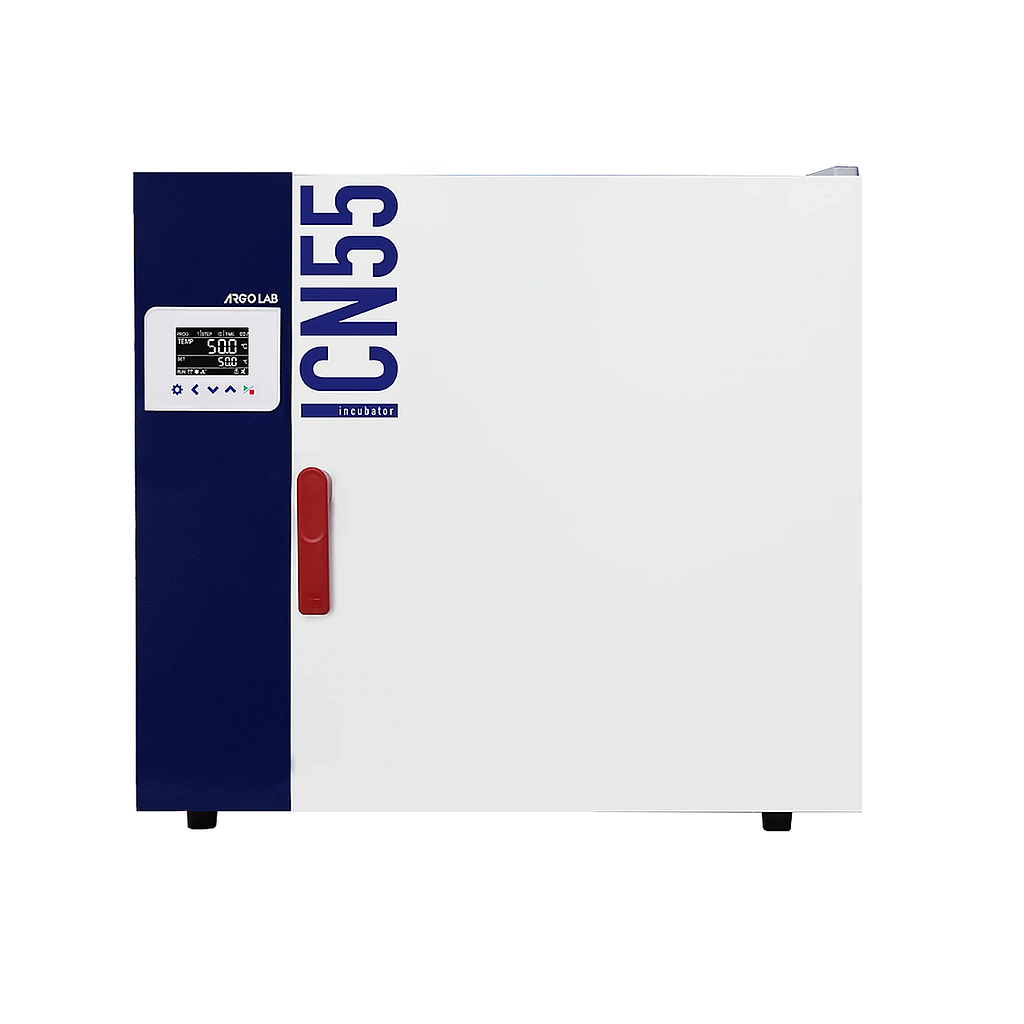

Giorgio Bormac ICN 55 PLUS Natural convection incubator (55 L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN61010-1:2010 - EN61010-2-010:2003

Performance

Capacity: 55 L

Working temperature: +5 Ta…70 °C

Temperature fluctuation at 37°C: ±0.3 °C

Temperature variation in space at 37°C: ±0.5 °C

Heating time at 37°C: 25 m

Features

Maximum shelf load: 10 kg

Security class (DIN 12880): 2

Overtemperature safety system: electronic

Number of shelves: 2

Max number of shelves: 5

Programs: 8 programs with up to 8 steps each, 1 single-step program, and 1 multi-step program with up to 64 steps

Internal Data Logger: Yes

Data Export: Yes, via USB stick

Maximum internal recording capacity: 2167

Display: LCD

Graph display: No

Operation History: No

Alarm History: No

Ramp function: No

Multi-User Function: No

Door Switch: No

Timer: 99 : 59 hh:mm

Heating type: Natural convection

Useful volume: 55 L

Feeds

Power supply: 230 V

Frequency: 50 - 60 Hz

Absorbed power: 250 W

Dimensions and weight

Dimensions (WxDxH): 660 x 600 x 500 mm

Internal dimensions (WxDxH): 400 x 385 x 360 mm

Minimum distance between shelves: 50 mm

Weight: 42 kg
