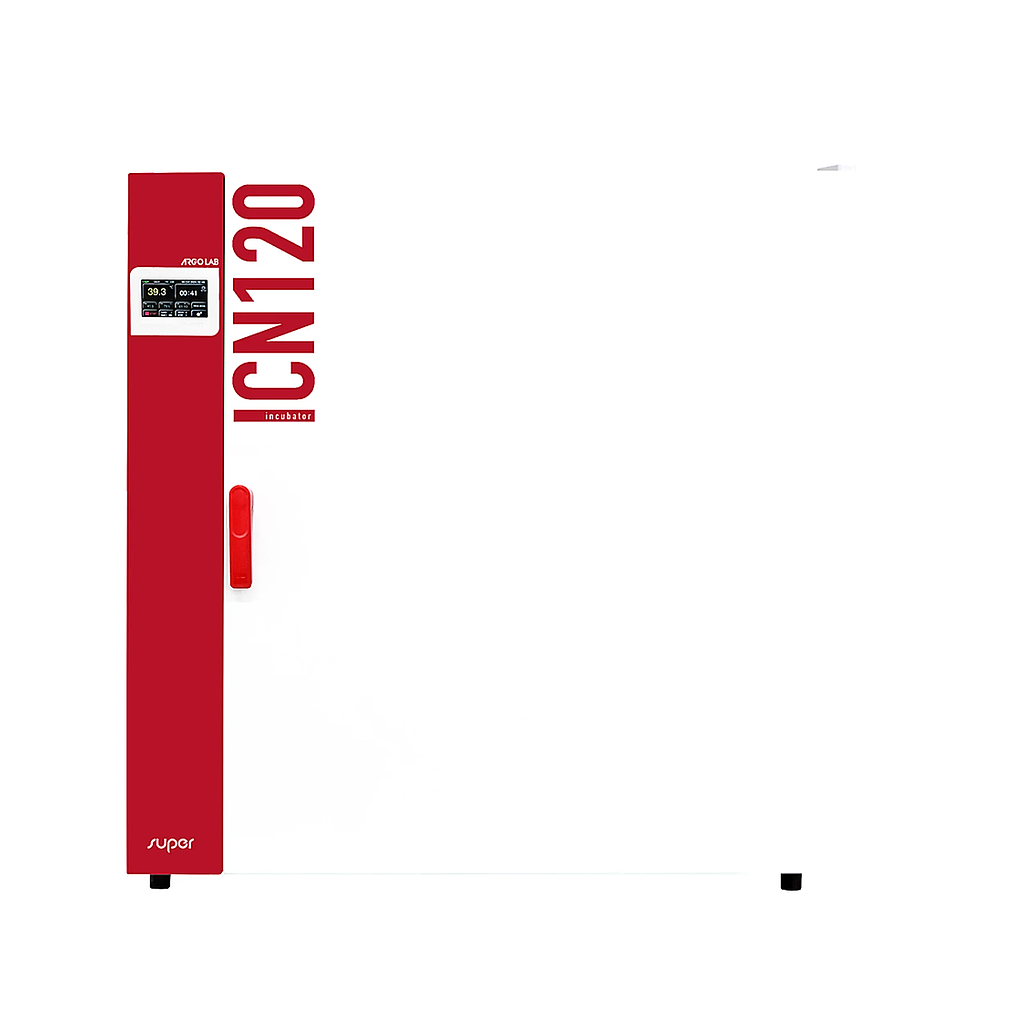

Giorgio Bormac ICN 120 SUPER Natural convection incubator (120L)

Standards applied

Regulations: 2006/95/EC - 2004/108/EC - EN61326-1:2006 - EN61010-1:2010 - EN61010-2-010:2003

Performance

Capacity: 120 L

Working temperature: +5 Ta…70 °C

Temperature fluctuation at 37°C: ±0.3 °C

Temperature variation in space at 37°C: ±0.5 °C

Heating time at 37°C: 30 m

Features

Maximum shelf load: 10 kg

Security class (DIN 12880): 2

Overtemperature safety system: electronic

Number of shelves: 3

Max number of shelves: 7

Programs: 8 programs with up to 8 steps each, 1 single-step program, and 1 multi-step program with up to 64 steps

Internal Data Logger: Yes

Data Export: Yes, via USB stick

Maximum internal recording capacity: 200000

Graph display: Yes

Operation History: Yes

Alarm History: Yes

Ramp function: Yes

Multi-User Function: Yes

Timer: 99 : 59 hh:mm

Heating type: Natural convection

Useful volume: 120 L

Feeds

Power supply: 230 V

Frequency: 50 - 60 Hz

Absorbed power: 350 W

Dimensions and weight

Dimensions (WxDxH): 780 x 700 x 610 mm

Internal dimensions (WxDxH): 520 x 500 x 460 mm

Minimum distance between shelves: 50 mm

Weight: 61 kg

Datasheet
