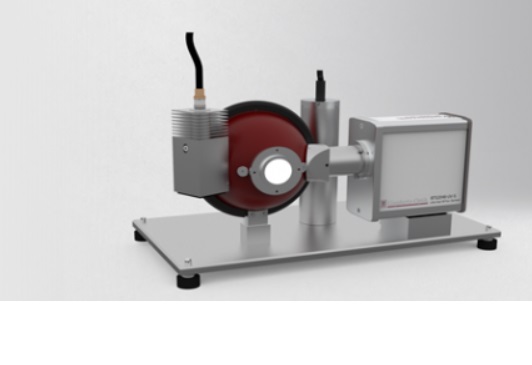

Gigahertz-Optik TFUV10-V01 UV spectroradiometer (Barium Sulfate, 200 nm ~ 550 nm)

-Measurement ranges: Spectral range from 200 nm to 550 nm. Spectral resolution 1 nm.

-Typical applications: UV LED manufacturers, UV LED luminaire manufacturers. Research institutes in the fields of semiconductors and with deep UV applcations. Metrologic institutes with demand for testing setups.

-Calibration: Calibration of spectral radiant power sensitivity from 200 nm to 550 nm with detailed factory certificate including retraceability. Optional ISO/IEC/EN 17025 testing certificate of the NMI accredited test laboratory.

-Spectral range: (200 - 550) nm

-Integration Time: 2 μs - 60 s

-Optical Bandwidth: 1 nm

-Number of pixels: 2048

-Chip: highly sensitive back-thinned CCD chip, single-stage cooling (1TEC)

-Coating: Barium Sulfate

-Diameter: 100 mm

-Integrating sphere: 2Pi with auxiliary lamp and additional aging lamp, port for BTS2048-xx-F version, plugs for air-flow for ozone-absorption reduction
