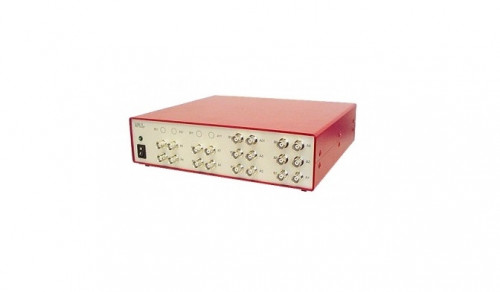

Gigahertz-Optik P-9802 Multi-channel light meter (20 ms ~ 4 s)

-Detector interface: BNC type connector

-Measurement range: 7, fixed selection or automatically (for specification see table below)

-CW integration time: 20 ms to 4 s (set by RS232 command)

-Measurement modes: CW, Peak, Dose, Relative (%), channel A / channel B (%)

-dose measurement: Integration of the measured values at 1s/100ms intervals

-Offset: offset compensation in all ranges

-Calibration: storage from up to 255 data sets

-Interface: only via RS232

-Interface: RS232 (9600 baud, 8 digit, 1 stop bit, no parity)

-Detector interface: up to 24 channels (half of the channels can measure simultaneous, second half simultaneous afterwards)

-Power Supply: with supplied external mains supply

-Temperature range: (5 - 40)°C

-Humidity: <80%, non-condensing
