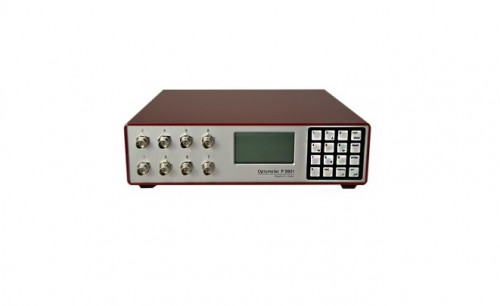

Gigahertz-Optik P-9801-V03 High Class Current Amplifier (8 channels , 6.5 – 7.5 VDC/1A)

-Power Supply:

(6.5 – 7.5) VDC / 1A

Plug: 5,5 / 2,5 mm / 10 mm

-Detector interface: 8 BNC sockets

-Trigger: CMOS level (0/5V) / BNC socket, internal pull-up 10 k to + 5 V

-Analog output:

± 2.5 V (max. + - 5 V), Ri = 100 R, max. Current = 2 mA, BNC socket

-Inputs: Amperes, optical units corresponding to calibration data, factor, percent, log (depends on the measurement quantity)

-Measurement range: 8 (2.000 mA to 0.1 pA) manual or autorange

-CW integration time: 1 ms – 999.999 s

-Pulse trigger:

Key run / stop

for all channels (channel 1 – channel 8)

rising edge or trailing edge

-Pulse integration time: 1 ms – 999.999 s

-Pulse pre trigger time: 0 ms – 400 ms

-Offset: Correction range transcending

-Parameter adjustment: Remote control or front panel keys (menu), adjusted values permanently stored (EEPROM)

-Calibration information:

Stored in EEPROM

max. 20 detectors (each 80 entries, e.g. wavelength, interpolation between the entries), manual calibration factor (keys)

E (illuminance) and Ø (total flux) each with one calibration entry

-Logger memory: Max. 5957 entries each channel, stored in RAM

-Front panel control: 16 keys, menu system

-Interface:

RS232: 600 – 57600 Baud, 8 Data Bit, 1 Stop Bit, No Parity, Connector DSUB 9pins, female

IEEE488: AH1, SH1, L4, T4

-Dimensions: 280 mm x 250 mm x 70 mm

-Temperature range:

Operating: (5 to 40)°C

Storage: (-10 to 50)°C

-Humidity: <80%, non-condensing

-Accessories:

Power Supply: 230 VAC / 7 VDC / 1.2 A or 120 VAC / 7 VDC / 1.2 A
