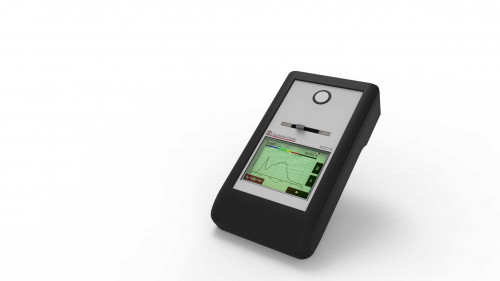

Gigahertz-Optik MSC15 Hand-held spectral light meter (360 - 830 nm, 1 - 350000 lx)

-Measurement range: 1 lx to 350,000 lx, 360 nm to 830 nm

-Typical applications: Precise spectral light meter for the lighting industry and all kind of applications

-Calibration: Factory calibration. Traceable to international calibration standards.

-MSC15:

Handheld light meter for illuminance, spectral data and light color. Color-Touchscreen, simple intuitive Operation with clearly arranged display views. Storage of 10 measuring points and selection of different display views is possible.

(Class B according DIN 5032-7 or AA according to JIS C 1609-1:2006)

-Measured Quantity:

Illuminance photopic

Illuminance scotopic

Spectral Irradiance

Color coordinates (x,y)

CCT

CRI (color rendering index)

PAR– PPFD

Melanopic irradiance

Melanopic illuminance (equivalent melanopic lux)

Melanopic daylight equivalent illuminance

Total irradiance for bilirubin (Ebi)

Average spectral irradiance for bilirubin (AAP)

Other color quantities as well by software (x, y, u´, v´, X,Y,Z, delta uv, color temperature, color rendering index (CRI) Ra, R1-R15, TM-30-20, CQS, CIE-170, etc.)

-Input optics:

Diffuser window with 10mm diameter, cosine corrected field of view, f2 ≤ 3%

-Calibration uncertainty:

Illuminance (standard illuminant A, k=2) +/- 3%

Illuminance (typ. LED, k=2) +/- 4%

-Interface: USB 2.0

-Temperature range:

Operation: 10°C to +30°C

Storage: -10°C to +50°C

-Power Supply: 5VDC by USB

-Power Supply:

rechargeable battery

8h of operation (continuous measurement, 100% display backlight on)

13.5h of operation (one measurement, standby modus, 100% display backlight on)

30h of operation (one measurement, standby-modus, reduced display backlight to 10% (sufficient for indoor lighting conditions))

-Display: Color Touchscreen

-Weight: 160g

-Dimensions: 136 mm x 74 mm x 32 mm
