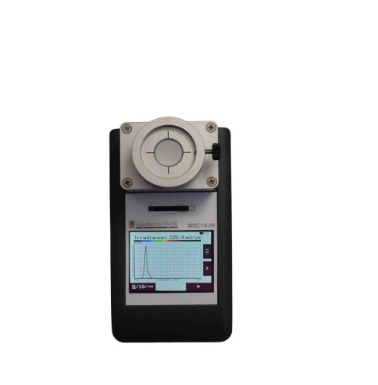

Gigahertz-Optik MSC15-W Hand-held spectral polymerization meter (8E-6 W ~ 15 W, 360 nm ~ 830 nm)

-Measurement range: 8E-6 W to 15 W, 360 nm to 830 nm

-Typical applications Precise spectral light meter for the lighting industry and all kind of applications

-Calibration: Factory calibration. Traceable to international calibration standards.

-General:

Handheld light meter for radiant power, spectral data and light color. Color-Touchscreen, simple intuitive Operation with clearly arranged display views. Storage of 10 measuring points and selection of different display views is possible.

-Measured Quantity:

Radiant power

spectral radiant power

Radiant power of individual wavelength ranges

CRI (colour rendering index)

-Input optics: Integrating sphere type of entrance optic wiht 14,85 mm entrance diameter

-Spectral Detector:

+Spectral range: (360 - 830) nm

+Optical Bandwidth: 10 nm

optical bandwidth correction applied according to CIE 214

+Measurement range: (8E-6 - 15) W (typical blue LED)

+ΔCCT:

± 50 K (standard illuminant type A, k=2)

± 3 MK-1 (Standard illuminant type A, k=1)

± 4% (depending on the LED spectrum, k=2)

+Δy Δx uncertainty: ±0.002 (Standard illuminant A, k=2)

+Repeatability: ±0.0002

+Peak wavelength: ±1 nm

-Calibration uncertainty: Radiant Power (k=2) +/-5%

-Interface: USB 2.0

-Temperature range:

Operation: 10°C to +30°C

Storage: -10°C to +50°C

-Power Supply: 5VDC by USB

-Power Supply:

rechargeable battery

8h of operation (continuos measurement, 100% display backlight on)

13.5h of operation (one measurement, standy modus, 100% display backlight on)

30h of operation (one measurement, standby-modus, reduced display backlight to 10% (sufficient for indoor lighting conditions))

-Display: Color Touchscreen

-Weight: 160 g

-Dimensions: 136 mm x 74 mm x 32 mm
