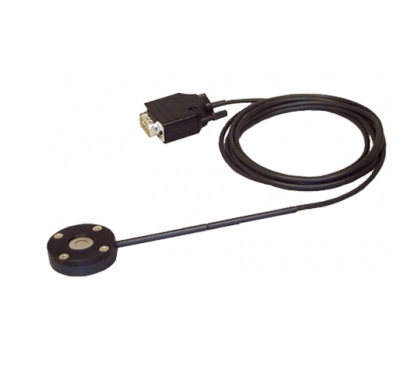

Spectral responsivity: 400 nm - 1100 nm Si & ND Filter
Active Area: 7 mm Ø
Typical responsivity:
1.3 mA/W @ 633 nm
20 mA/W @ 900 nm
max. radiant power:
100 mW @ 633 nm @ 1 mA
50 mW @ 900 nm @ 1 mA
Cable Length: 2m with ITT (-4) connector
Max. signal current: 1 mA
Temperature range: 0 - 40°C
Calibration: Calibration of radiant power responsivity in A/W and calculated spectral irradiance sensitivity in A/(W/m²) in steps of 10 nm from 400 nm to 1100 nm
