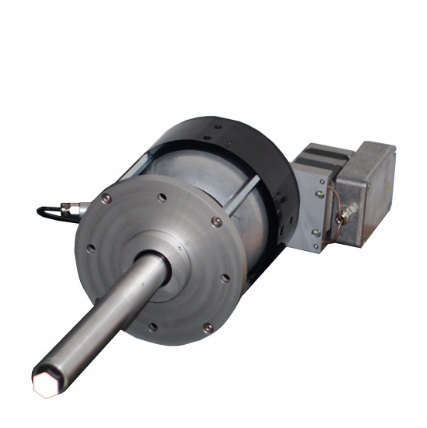

Gigahertz-Optik ISS-8P-RVA-ROD Integrating sphere

-Measurement range: RGBW LED spectral range

-Typical applications: Reference lamp for pixel matching of image sensors and cameras as well as luminance and radiance standard. Especially for use in climatic chambers (environmental chambers).

-Calibration: Calibration of the spectral radiance. Calibration certificate with description of the calibration procedure, reference standards applied, traceability and calibration uncertainty.

-Temperature range:

Operation (electronics and sphere): (10 to 30)°C

Operation (Rod): typical range of climate chambers

-Dimensions:

Electronic device: 46.5 mm x 29 mm x 33.5 mm

-Weight:

ISS-8P-RVA-ROD: 2.7 kg

Electronic device: 12 kg

Datasheet

Drawing
