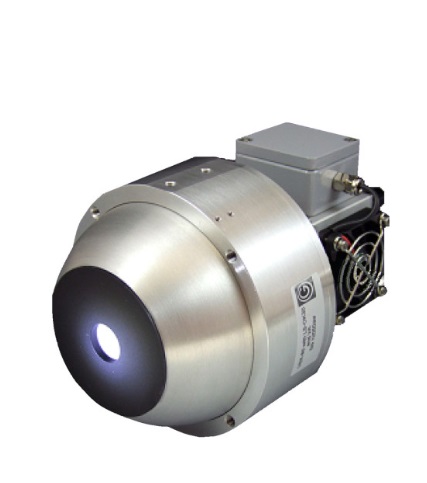

Gigahertz-Optik ISS-8P-HP Integrating Sphere

-Measurement range:

Luminance: OD0: 120000 cd/m², OD1: 12000 cd/m², OD2: 1200 cd/m² (at CCT 2960K with LH-100F-UV)

Luminance: OD0: 75000 cd/m², OD1: 7500 cd/m², OD2: 750 cd/m² (at CCT 2856K with LH-100F-UV)

-Typical applications: Uniform light source for pixel uniformity calibration and adjustment. Intensity control in three steps (OD0, OD1, OD2) by exchangeable neutral densnity attenuation filters.

-Calibration: Luminance at 100 % intensity. Optional calibration of the spectral radiance (380 nm to 1100 nm). Calibration certificate with description of the calibration procedure, reference standards applied, traceability and calibration uncertainty.

-Calibration uncertainty:

luminance (cd/m²): ±3.5% u(k=2)

color temperature [K]: ±2% u(k=2)

-Light Output Port: 19 mm

-Luminance:

Range: 3 levels

120000 cd/m², 12000 cd/m², 1200 cd/m² (at CCT 2960K with LH-100F-UV)

75000 cd/m², 7500 cd/m², 750 cd/m² (at CCT 2856K with LH-100F-UV)

OD0:

120000 cd/m² (at CCT 2960K with LH-100F-UV)

75000 cd/m² (at CCT 2856K with LH-100F-UV)

OD1:

12000 cd/m² (at CCT 2960K with LH-100F-UV)

7500 cd/m² (at CCT 2856K with LH-100F-UV)

ΔCCT = -10 K

OD2:

1200 cd/m² (at CCT 2960K with LH-100F-UV)

750 cd/m² (at CCT 2856K with LH-100F-UV)

ΔCCT = -20 K

-Lamp Connection: Two Banana type plugs

-Specifications: 80 mm ODM sphere with 19 mm light entrance port
