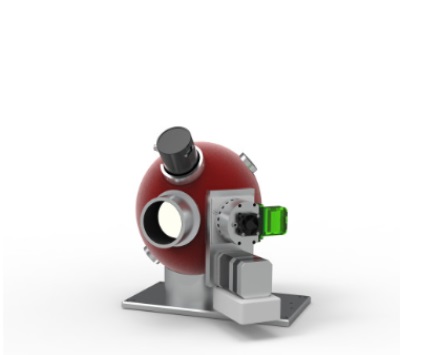

Gigahertz-Optik ISS-17-RGBW Integrating sphere

-Integrating sphere: 170 mm internal diameter (Base sphere model UMTB-170-S-1) with barium sulfate coating (ODP97).

-Light Output Port: 50 mm with resolution tube to suppress the lateral incident light (UMPA-2.0-xx)

-Uniformity: better 98%

-Light Source: RGBW LED

-Monitor detector: spectral reference sensor CSS-45

-Design: S-ISS controls ISS-17-RGBW with the help of VAM variable aperture and CSS-45 monitor detector.

-Calibration:

Spectral Radiance: Spectral range 380 nm to 780 nm in 10 nm steps, including calibration certificate.

Luminance: At calibration point

-Control electronics: ED-SC-4x20-MD elektronic device in a 3/4 19“ rack mounting.

-Power Supply: AC input for (115 - 230) V / (50 - 60) Hz to the ED-SC-4x20-MD.

-Temperature range: (+5 to +30) °C, no condensation
