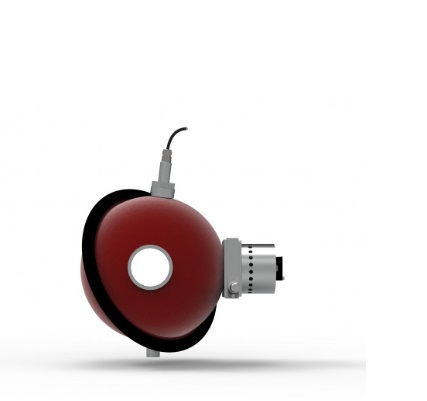

Gigahertz-Optik ISS-15-RGBW Integrating sphere (including calibration and electronic device)

-Measurement range: RGBW LED spectral range

-Typical applications: Reference lamp for pixel matching of image sensors and cameras as well as luminance and radiance standard. Various LED wavelengths are possible on request, e.g. to meet EMVA 1288.

-Calibration: Calibration of the spectral radiance. Calibration certificate with description of the calibration procedure, reference standards applied, traceability and calibration uncertainty.

-Warm-up time: Heat-up process typically takes 10 to 15 minutes but depends strongly on the LED current used

-Current: If all four LEDs are powered at the same time a max. of 700 mA for all channels is possible.

For single LEDs 1500 mA are possible.

-Temperature range:

Operation (electronics and sphere): (10 to 30)°C
