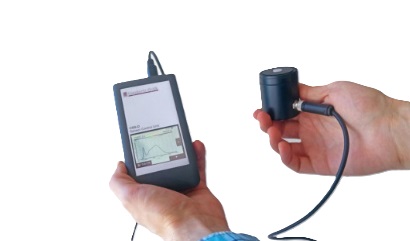

Gigahertz-Optik CSS-45-Bili Spectral Bilirubin Meter (1 lx ~ 350,000 lx, 360 nm ~ 830 nm)

-Measurement range:

IEC 60601-2-50: 0.03 µW/cm² to 35mW/cm², 400 nm to 550 nm

AAP 2011 Guidance: 2E-04 µW/(cm² nm) to 270 µW/(cm² nm), 460 nm to 490 nm

AAP 2004 Guidance: 430 nm to 490 nm in µW/(cm² nm)

Average irradiance: 420 nm to 500 nm µW/(cm² nm)

Photometric: 1 lx to 350,000 lx, 360 nm to 830 nm, 1700 K to 17000 K

-Typical applications: Compact and precise illuminance handheld measurement device for bilirubin measurements

-Calibration: Factory calibration. Traceable to international calibration standards.

-Weight:

Sensor: 130g, only sensor without cable

Display unit: 160 g

-Temperature range:

Operation: 10°C bis +30°C

Storage: -10°C bis +50°C

-Power Supply:

rechargeable battery

minimum 8h of operation

Datasheet

Technical drawing
