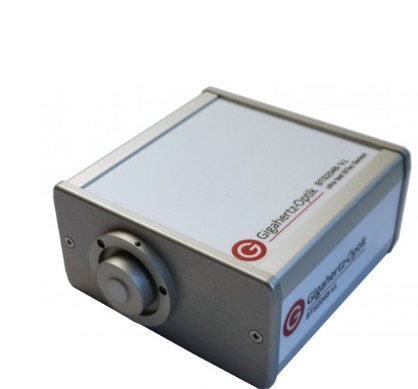

Gigahertz-Optik BTS2048-VL Spectroradiometer (300 nm ~ 1050 nm, 1 lx ~ 3E8 lx)

Name: Gigahertz-Optik BTS2048-VL Spectroradiometer (300 nm ~ 1050 nm, 1 lx ~ 3E8 lx)
Brand: Gigahertz-Optik

ManufacturerGigahertz-Optik(View more products from this manufacturer)

ModelBTS2048-VL

P/N15298281

OriginGermany

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

-Measurement range:

Spectral: 300 nm to 1050 nm, 1 lx to 3E8 lx (min. level by white LED with low saturation)

Integral: photometric 360 nm to 830 nm, 0.1 lx Noise signal up to 3E8 lx

-Typical applications: CCD spectroradiometer for design applications. Module for integration in test systems for front-end and back-end LED binning.

-Calibration: Factory calibration. Traceable to international calibration standards

-Measured Quantity:

Spectral irradiance (W/(m² nm)), irradiance (W/m²), illuminance (lx), spectral radiant intensity (W/(sr nm)), radiant Intensity (W/sr), luminous intensity (cd), dominant wavelength, peak wavelength, center wavelength, centroid wavelength, x, y, u´, v´, X,Y,Z, delta uv, color temperature, color rendering index (CRI) Ra, R1-R15, TM-30-20, CIE224, CQS, CIE170, etc.. Option integrating sphere: in addition spectral flux (W/nm) and luminous flux (lm) Option goniometer: in addition radiant intensity (W/sr) distribution and luminous intensity (cd) distribution

-Sensor:

Accuracy class B according to DIN 5032 and CIE No. 69

Accuracy class A for f1`, u, f3 and f4 according to DIN 5032 and CIE No. 69

-Input optics: Diffusor, cosine corrected field of view (f2 ≤ 3%)

-Filter wheel: 4 positions (open, closed, OD1, OD2). Use for remote dark current measurement and dynamic range extension.

-BiTec:Parallel measurement with diode and array is possible, thereby linearity correction of the array through the diode and online correction of the spectral mismatch of the diode through a*(sz(λ)) respectively F*(sz(λ)).

-Microprocessor: 32bit for device control,16bit for CCD array control, 8bit for photodiode control

-Interface: USB V2.0, Ethernet (LAN UDP protocol), RS232, RS485

-Data transfer: Standard for 2048 float array values via ethernet 7ms, via USB 2.0 140 ms

-Input Interfaces: 2x (0 - 25) VDC, 1x optocoupler isolated 5 V / 5 mA

-Output Interfaces: 2x open collector, max. 25 V, max. 500 mA

-Trigger: Trigger input incorporated (different options, rising/falling edge, delayed, etc.)

-Software:

User software S-BTS2048

Optional software development kit S-SDK-BTS2048 for user software set-ups based on .dll‘s in C, C++,C# or in LabView.

-Power Supply:

With power supply: DC Input 5V (±10 %) at 700 mA

With USB bus (500mA)
