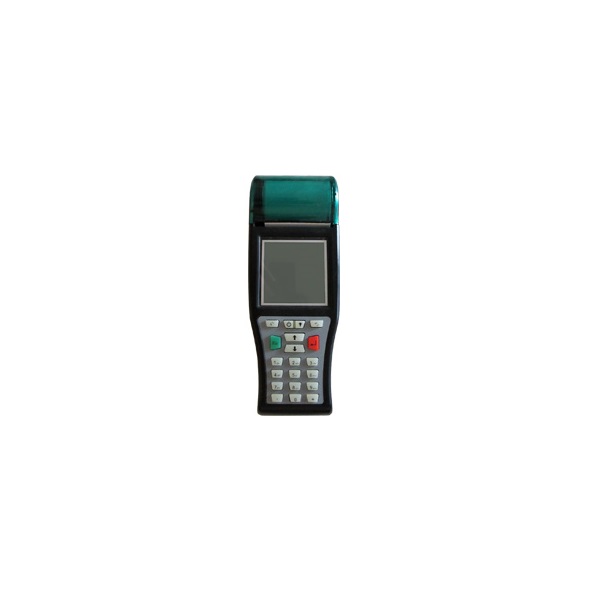

GFUVE GF900P Portable Infrared Meter Reader with Inbuilt Printer (built-in printer)

BAISC PARAMETERS　

CPU: ARM32 CPU 132MHz (SAMSUNG)

Operation system: TPOS

RAM: 512K

ROM: 2M

Flash: 64M Flash

Display: 3.2 inch display, 160x160 pixel

Real time: Much less than 0.5 seconds every day under common temperature

Keypad: 20 keypads

Non-slip function: Non-slip handle design, the battery back can locked to prevent battery cover lost

Power off protection: Using flash technology, the data is still safe preservation after power off

Control instruction: ESC/POS compatible instruction sets

Communication ports: RS232, IR, USB2.0

Optional configuration: IR

Battery: High capacity rechargeable of lithium battery

Programming language: C language, DBF database development system

Seiko printer　

paper diameter: 40mm

The maximum width of the printing paper: 58mm

The maximum width can be printed: 48mm

Print method: Thermal line printing

Resolution: 8 dots/mm (203dpi)

The count of every line: 384 dots，every line can print 16 Chinese characters or 32 characters

Print contents: Chinese, Number, English, Graphics, Curve, Barcode

Print speed: 45mm/s

MECHANICAL PARAMETERS　

Dimensions (LxWxH) (mm): 195×65×45

Weight (g): About 256 (not including battery)

ENVIRONMENTAL CONDITIONS　

Work temperature: -5°C ~ 50°C

Storage temperature: -25°C ~ 70°C
