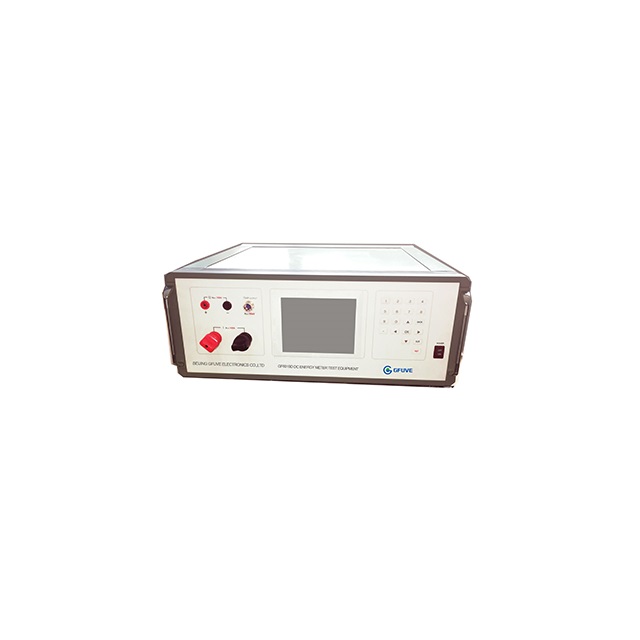

GFUVE GF6019D High Precision DC Energy Meter Test Equipment (DC 800V 100A)

ELECTRICAL PARAMETERS

Accuracy : 0.05%

Power supply : One Phase AC 180-265V, frequency 50/60Hz.

DC Voltage Output　

Range: 100V, 350V, 500V, 700V (max 800V)

Adjustment range: (0-120)%RG(1)

Adjustment fineness: 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.

Stability: 0.01%/120s

Distortion: 0.1% (Non-capacitive load)

Output load: 20VA

Full load regulation rate: ≤±0.01%RG

Accuracy: ±(0.03%RD+0.02%RG)

DC Current Output　

Range: 75mV, 2A, 20A, 50A, 100A

Adjustment range: (0-120)%RG(1)

Adjustment fineness: 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.

Stability: <0.01%/120s

Distortion: ≤0.1% (Non-capacitive load)

Output load: 150VA

Full load regulation rate: ≤±0.01%RG

Accuracy: ±(0.03%RD+0.02%RG)

Externally attached shunt: 100mV

Accuracy: ±(0.06%RD+0.04%RG)

DC Power Output 　

power output stability: <0.01%RG/120s

power accuracy: ±(0.03%RD+0.02%RG)

DC Power Energy Measurement Error　

power energy: ±(0.03%RD+0.02%RG)

Power Pulse Output 　

Power Pulse Output: 20KHz (Full-Range)

Power Pulse Input　

Energy pulse input: 20KHz

MECHANICAL PARAMETERS 　

Dimensions (W×D×H) (mm): 460×460×175

Weight (kg): 20

ENVIRONMENTAL CONDITIONS　

Ambient temperature: -10°C to +40°C

Relative humidity: 35%-85%
