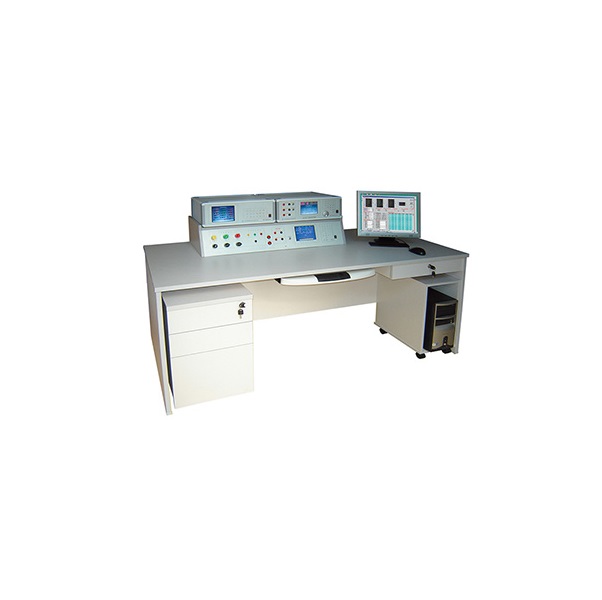

GFUVE GF3600 Three-Phase AC-DC Instrument Test Equipment (AC 800V 100A; DC 1000V 30A)

ELECTRICAL PARAMETERS

Accuracy class : 0.05%, 0.1%

Power supply: AC 220V ± 10% or AC 110V ± 10%, 50/60Hz

AC Voltage output and measurement　

U1, U2, U3 Range: 10V, 20V, 50V, 100V, 200V, 400V, 800V

Output range: (0-120%)% RG

Adjustment resolution: 0.01% RG

Output stability: 0.01%/min

Measurement accuracy: 0.05% RG

Output load capability: 50VA

Measurement resolution: ≤5×10-5 RG

AC Current output and measurement　

I1, I2, I3 Range: 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A

Output range: (0-120)% RG

Adjustment resolution: 0.01% RG

Output stability: 0.01%/min

Measurement accuracy: 0.05% RG

Output load capability: 100VA

Measurement resolution: ≤5×10-5 RG

Power output and measurement　

Output stability: 0.01%/1min

Active accuracy: 0.05% RD (0.01A-100A, 30V-600V, PF ≥0.5L or PF ≥0.8C)

Reactive accuracy: 0.1% RD (0.01A-100A, 30V-600V, PF ≥0.5)

Measurement resolution: ≤5×10-5 RG

Energy measurement　

Active accuracy: 0.05% RD (0.01A-100A, 30V-600V, PF ≥0.5L or PF ≥0.8C),

0.1% RD (0.05A-100A, 30V-600V PF ≥0.5C)

Reactive accuracy: 0.1% RD 0.05A-100A, 30V-600V PF ≥0.5

Setting range of test pulse No.: 1-9999999

Max. frequency of receiving pulse: 2MHz

Phase output and measurement　

Output range: 0°-359.99°

Adjustment resolution: 0.01°

Measurement accuracy: 0.05°

Measurement resolution: 0.001°

Power factor output and measurement　

Output range: -1 to 0 to +1

Measurement accuracy: 0.0005

Measurement resolution: 0.0001

Frequency output and measurement　

Output range: 45-65Hz

Adjustment resolution: 0.001Hz

Measurement accuracy: 0.005Hz

Measurement resolution: 0.001Hz

Harmonic　

Times: 2 to 31

Resolution: 0.1% (compared with fundamental wave)

Contents: 0-30%

Phase: 0°-359.99°

DC Voltage output　

Range: 100mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 600V, 1000V

Setting range: 0-1000V

Regulated step value: 0.002% RG

Accuracy: 0.03% RD + 0.02% RG

Stability: 0.01%RG/1min

Output load capability: 25VA

Ripple wave and noise: 0.1-100KHz

Output ≤100 V: Ripple wave ≤2mVrms

Output > 100 V: Ripple wave ≤10mVrms

DC Current output　

Range: 10μA, 30μA, 100μA, 300μA, 1mA, 3mA, 10mA, 30mA, 100mA, 300mA, 1 A, 3 A, 10 A, 30 A

Setting range: 0-30A

Regulation resolution: ≤0.02% RG

Accuracy: 0.03% RD + 0.02% RG

Stability: 0.01%RG/1min

Output load capability: 30VA

MECHANICAL PARAMETERS 　

Dimension (L×W×H) (mm): 1800x800x750

Weight (kg): 135

ENVIRONMENTAL CONDITIONS　

Operating temperature: 0°C to 40°C

Relative humidity: ≤85%
