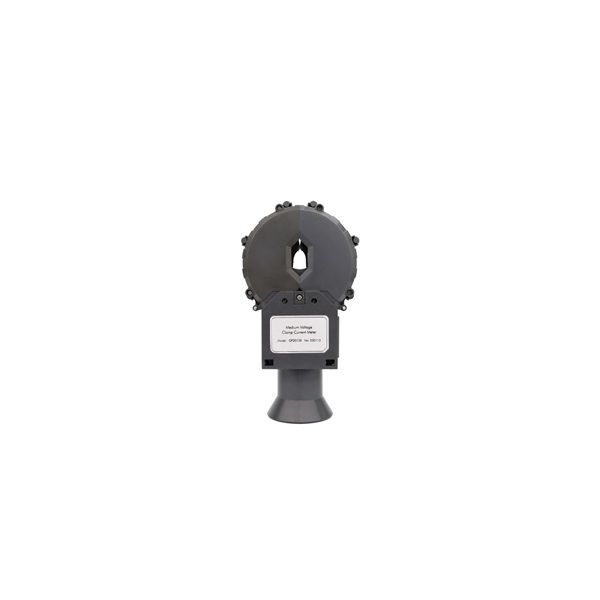

GFUVE GF2015 Wireless Primary Current Recorder Meter

Basic parameters　

Recording ammeter kit:

3 wireless current sensors (GF2015A, GF2015B, GF2015C)

433 HHT(handheld terminal) or 433M wireless data reader(GF2015R)

PC-LinkSoftware software(GF2015S)

Carrying case

Data recording interval:

5min, 10min,15min, 30min;

Interval user settable from 1-60min

Communication distance(wireless): 100m

Communication: 433M, 868M or 915M (option)

Installation: Installation with electricity; Disassemble with electricity

Battery: 3.6 volt lithium battery,19000mAh; Battery can be replaced

Software requirements: PC-Linksoftware & microsoft Excel

Processor: 100 MHz or higher ( 200 MHz or higher recommended)

RAM: 32 MB, 64M recommended

Drive space: 15 MB to load software, 10 MB of operating Space

Use of position: Outdoor or indoor

Electrical parameters　

Range of operation　

Voltage: 69kV,35kV,20KV, 10kV, 6kV

Current: 1 to 100A, 1 to 300A, 1 to 600A, 1 to 1000A, 1 to 2000A

Sensor opening: Up to 2.5 cm

Resolution　

1 to 99.9A: 0.1A

100 to 2000A: 1A

Amps accuracy : ±1% of reading plus 2 counts

Frequency: 60Hz (57-63 Hz) or 50Hz (47-53 Hz) models available

Mechanical parameters　

Dimensions (W×D×H) (cm): 18x9.5x4.62

Weight (kg): 0.58

Environmental conditions　

Operating temp.: -40°C to 60°C
