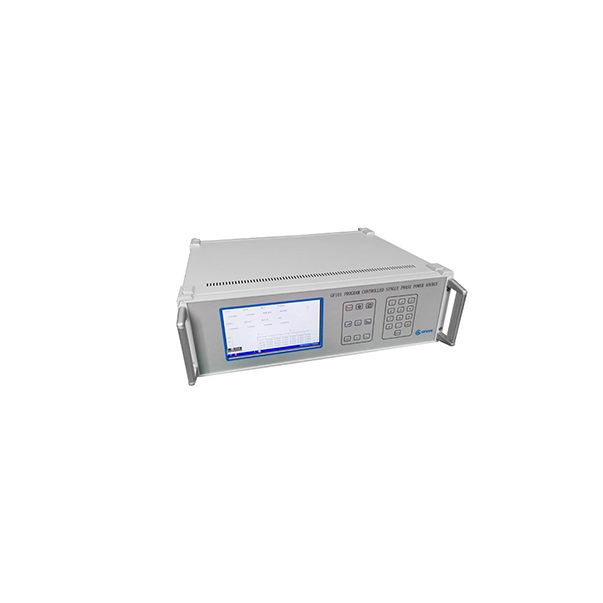

GFUVE GF101 Program-Controlled Single Phase Phantom Load Power Source (500V;100A)

ELECTRICAL PARAMETERS

Accuracy class: 0.05%, 0.1%

Power supply: Single phase AC 85-265V, 50/60 Hz

AC voltage output　

Range: 57.7V / 100 V / 220V / 380V, Switch automatically (max 500V)

Adjustment resolution: 0.01%, 0.1%, 1%, 10%,

Accuracy: 0.05% RG

Stability: Better than 0.01% RG/1min

Distortion degree: Better than 0.1% (not capacitive load)

Load capacity: 40VA

Full load regulation rate: Less than 0.01% RG

Full load regulation time: Less than 1ms

Temperature drift: 8 PPM/°C

Long-term stability: 60 PPM/year

AC current output

Range: 0.1A / 0.25A / 0.5A / 1A / 5A / 10A / 20A / 50A / 100A, switch automatically

Adjustment resolution: 0.01%, 0.1%, 1%, 10%,

Accuracy: 0.05% RG

Stability: Better than 0.01% RG/1min

Distortion degree: Better than 0.1% (not capacitive load)

Load capacity: 40VA

Full load regulation rate: Less than 0.01% RG

Full load regulation time: Less than 1mS

Temperature drift: 8 PPM/°C

Long-term stability: 60 PPM/year

Power output　

Active power accuracy: 0.05% or 0.1%

Reactive power accuracy: 0.1% or 0.2%

Stability: Better than 0.01% RG/1min

Phase　

Range: 0°-359.99°

Adjustment resolution: 0.01°, 0.1°, 1°, 10°

Accuracy: 0.03°

Frequency　

Range: 40-65 Hz

Adjustment resolution: 0.001 Hz, 0.01 Hz, 0.1 Hz, 1Hz

Accuracy: 0.002 Hz

Temperature drift: 0.5 PPM/°C

Long-term stability: 4 PPM/year

Harmonic　

Harmonic times: 2nd-63th

Adjustment resolution: 0.1% (Compared with fundamental wave)

Harmonic content (Compared with fundamental wave)

Voltage: ≤40%

Current: ≤40%

Phase: 0°-360°

MECHANICAL PARAMETERS　

Dimensions (W×D×H) (mm): 420x320x155

Weight (kg): 12

ENVIRONMENTAL CONDITIONS　

Operating temperature: 0°C ~ 40°C

Storage conditions: -30°C ~ 60°C

Relative humidity: ≤85%
