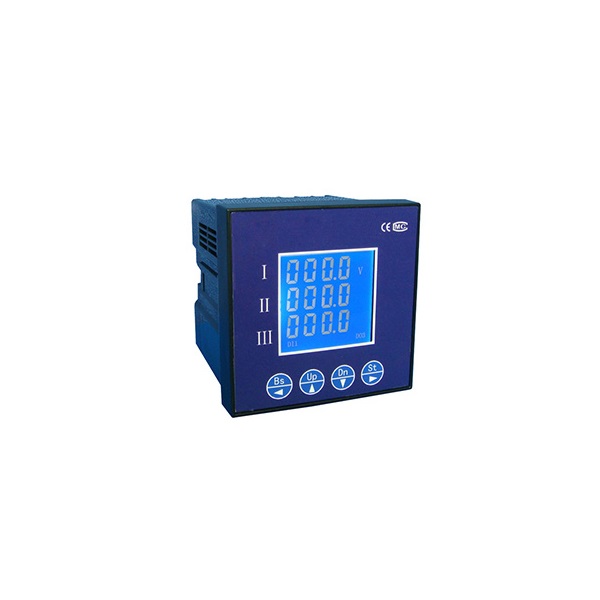

GFUVE FU9000 Three Phase Ac Digital Current and Voltage Display Meter (5A;380V)

Name: Measurement type

Programmable: PT, CT ratio, address, baud rate and other parameters.

Accuracy: 0.5 class

Display Figures: 4 bits

Rated input:

Current: 1A, 5A

Voltage: 100V, 220V, 380V

Over Range: Current: 1.2 times continuous, 10 times/10s ;

Voltage: 2 times continuous

Frequency: 50±5Hz or 60±10Hz (Option)

Power Supply: AC220V ± 20% or DC100-300V (Customization)

Power consumption: <3VA

Insulation strength: 2KV/Min. 2mA

Insulation resistance: ≥100MΩ

MTBF: ≥50000Hrs

Working Environment:

Temperature: -25 ~ +55℃

Humidity: ≤98% RH, without condensation

Real-time output: DC4-20mA, load capacity: ≤400Ω

Data output: RS485 port (Modbus-RTU protocol)

Switching input: Remote signal input (self power supply): AC or DC 220V

Switching output (self-control): Normally open contact output: AC 250V / DC 30V, 5A
