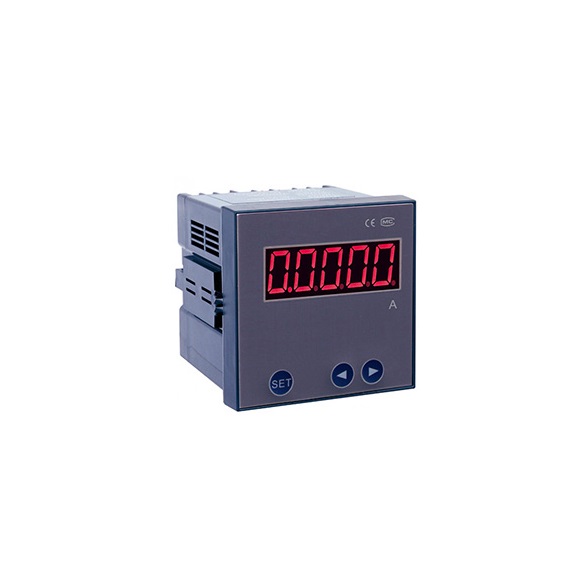

GFUVE FU8000 Single Phase AC DC Digital Current and Voltage Display Meter (380V;5A)

Name: Measurement type

Programmable: PT, CT ratio, address, baud rate and other parameters.

Accuracy: 0.5 class, frequency 0.2 class

Display figures: 4 bits (4½ bits for DC)

Rated input:

Current: 1A,5A; Voltage: 100V, 220V, 380V;

Temperature: PT100,J,K,T,E thermocouple.

Over range:

Current: 1.2 times continuous, 10 times/10s ;

Voltage: 2 times continuous

Frequency: 50Hz / 60Hz ±10%

Power supply: AC220V ± 20% or DC100-300V (Customization)

Power consumption: <3VA

Insulation strength: 2KV/min. 2mA

Insulation resistance: ≥100MΩ

MTBF: ≥50000Hrs

Working environment:

Temperature: -25 ~ +55°C

Humidity: ≤98% RH, without condensation

Real-time output: DC4-20mA, load capacity: ≤400Ω

Data output: RS485 port (Modbus-RTU protocol)

Switching input: Remote signal input (self power supply): AC or DC 220V

Switching output (self-control): Normally open contact output: AC 250V / DC 30V, 5A
