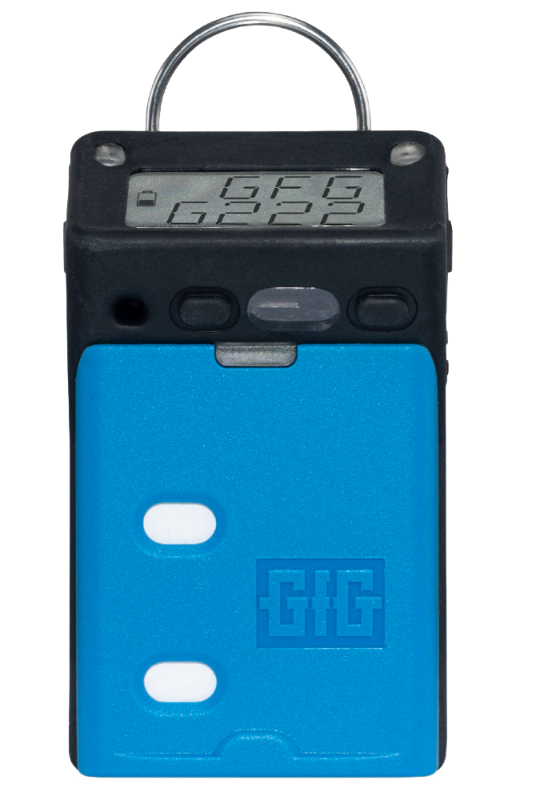

GFG G222E Gas detector (15 to 95% r.h.; 70 to 130 kPa)

Measuring principle: Electrochemical (EC) for toxic gases, hydrogen and oxygen

Sample gas feed: Diffusion opening

Display: 2 x 4 digit LC display; indicates battery capacity and gas concentrations with unit

Controls: 2 operating buttons

Alerting: 2 very bright alarm LEDs, audible alarm and vibration alarm; depending on the gas type, 2 or 3 instantaneous alarms; battery alarm with visual and audible signaling and indication in the display; horn 103 dB(A) (can be reduced to 90 dB(A))

Zero point and sensitivity adjustment: Manual or automatic with adjustment program if necessary; test gas supply via the “SMART CAP” with 0.5 to 0.6 slpm

Power supply: Replaceable alkaline battery (1x AA); replace only with battery listed in the operation manual

Battery life: Sensor dependent, per battery average: 9 months at 10 hour per working day or 90 days 24/7

Climatic conditions:

For operation: -4 to +122°F / -20 to +50°C; 15 to 95% r.h.; 70 to 130 kPa

For storage: -13 to +131°F / -25 to +55°C; 15 to 95% r.h.; 70 to 130 kPa (recommended 0 to +30°C)

Housing: Rubberized polycarbonate / plastic

Material: 1.93 x 3.3 x 1.26 in / 49 x 84 x 32 mm (W x H x D)

Dimensions: 4.06 to 4.76 oz / 115 to 135 g (with sensors, battery and clip)

Protection class: IP54
