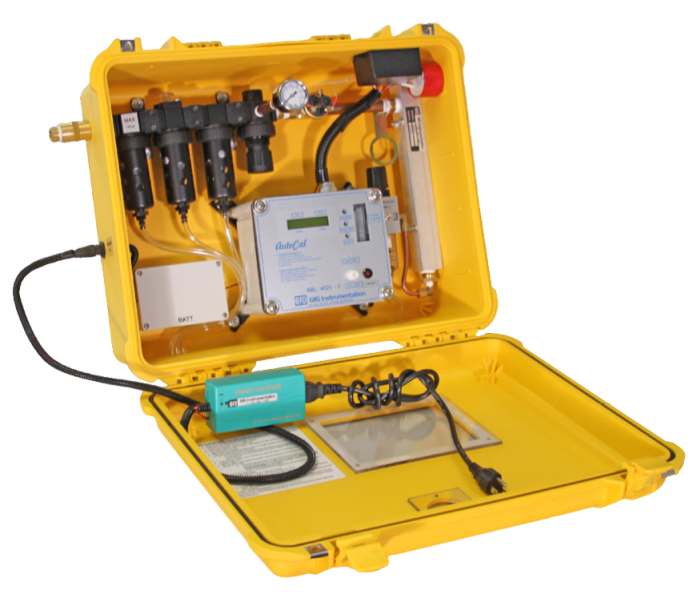

GFG 9025-XPS Compressed Air Monitoring System (0 - 100 ppm, 0.1 %/vol)

Ranges & resolution for sensors:

Carbon monoxide (CO): 0 – 100 ppm, resolution 1 ppm

Oxygen (O₂): 0 – 25 % vol, resolution 0.1 %/vol

Expected Sensor Life:

CO: Greater than 1 year

O₂: Greater than 1 year

Detection principles (sensor):

CO: Specific electrochemical cell

Oxygen: Electrochemical cell

Other Specification:

Power: 12 VDC, internal battery

Alarms:

Audible: Case mounted horn

Visual: Large red LED

Temperature range: +41 to +104°F (+5 to +40°C)

Adjustable alarm points:

CO: 10 ppm

O₂: 19.5% and 23.5% volume

Sample flow rate: 0.8 cubic feet of air per hour (scfh)

Filter panels: 25 CFM panel (2 ports)

Airline input: 1/4" Hanson standard, pressure 70 to 150 psi
