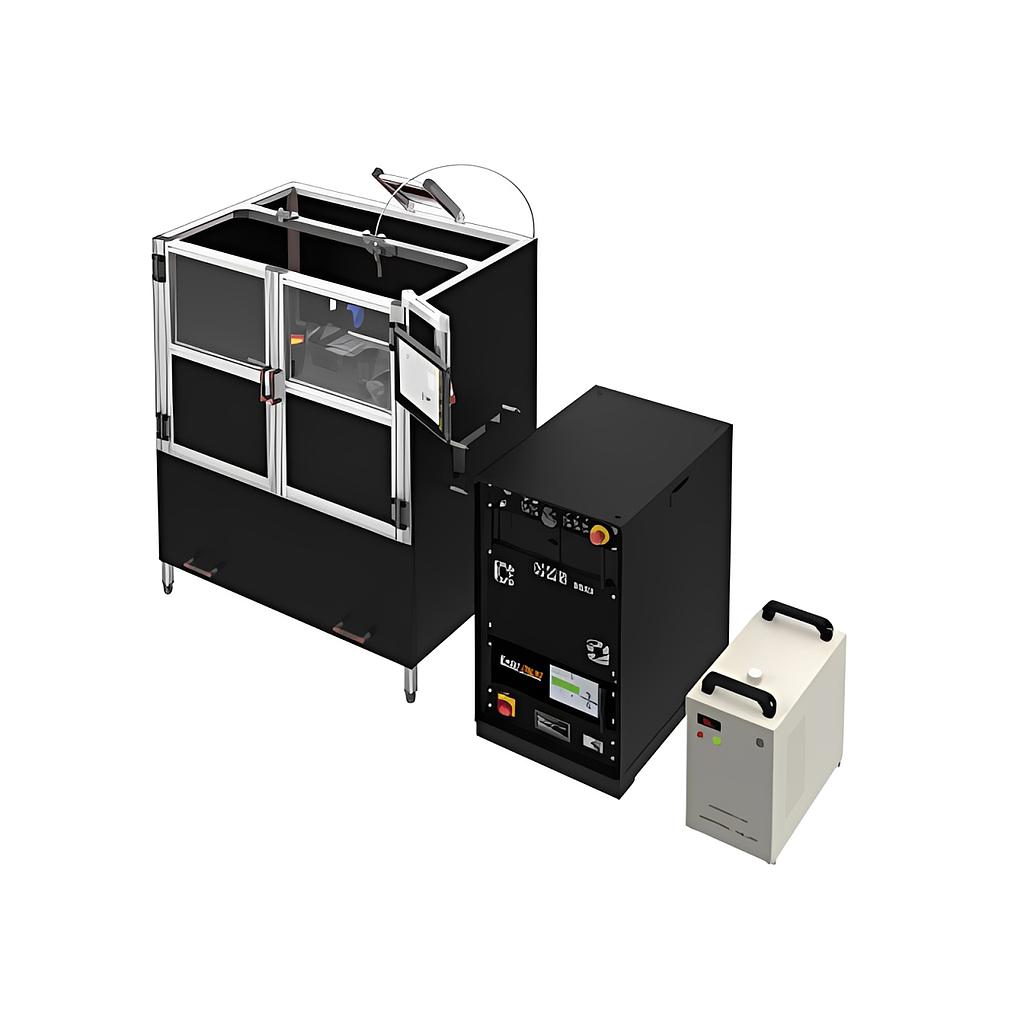

GESTER GT-RC06A Protective Clothing Molten Metal Splash Tester (touch screen control, ≥700–1800°C.)

Model: GT-RC06A

Control Mode: Touch screen

Laser Pyrometer Range: ≥ 700–1800°C

Emissivity Range: ≥ 0.100–1.100

High-Frequency Heating Device for Metal Heating:

Output power ≥ 6 kW, max. temperature ≥ 1800°C, distance from the pouring position < 30 cm; pouring temperature can be set, monitored and controlled in the software.

Frequency Range of the High-Frequency Heating Device: ≥ 150–450 kHz

Molten Metal Pouring Device: Sample holder with coupling, height/angle adjustable, rotation angles 0°, 60°, 70°, 75°.

PVC Film Calibration Device: EN ISO 9185

Cooling Method: Water cooling

Environment: 10–30°C

Installation: Floor standing

Customer-Supplied:

Suction hood smoke exhaust device;

Tap water (inlet & outlet) or optional chiller;

Balance 1000 g, accuracy ±1 g;

Muffle furnace or high-temperature drying oven (for PVC film calibration);

Protective equipment: protective gloves, protective face shields, aprons, leg guards.

Power Supply: Three phase 380V, 50Hz, 6000W

Dimension: 130 × 96 × 160 cm (L × W × H)

Weight: Around 360 kg

Accessories

Standard Accessories:

Touch Program Controller: 1 set

Optical Pyrometer: 1 pc

High-Frequency Generator: 1 pc

High-Frequency Induction Furnace: 1 pc

Crucibles: 1 pc

Sand Table: 1 pc

Foot Switch: 1 pc

ISO 9185 PVC Film (5 meters): 1 roll

ISO 9185 PVC Film Calibration Device: 1 pc

Optional Accessories:

Chiller Unit: Optional

This PPE testing equipment used for testing molten aluminum splash resistance Class D, molten iron splash resistance Class E, etc., of fabrics such as heat-insulating protective clothing and heat-insulating gloves.
