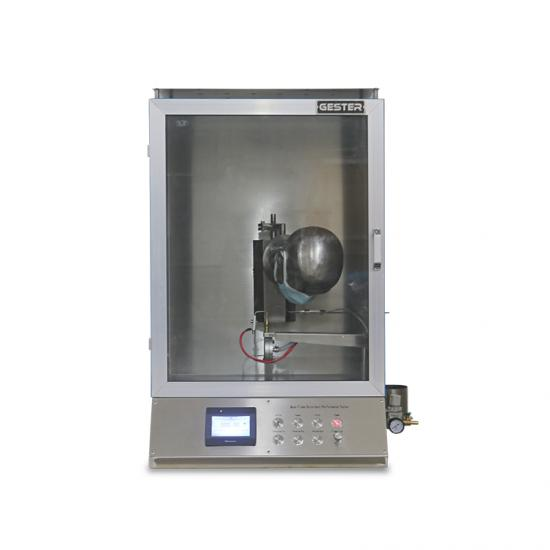

GESTER GT-RA06 Mask Flame Retardant Tester

A special test instrument for flame retardant performance of medical masks, to test the flammability performance of medical mask after contacting with flame at a certain linear speed

Linear speed of the tip of nose on head model: (60 ± 5) mm / s

Flame height: Initial height 40±4mm(adjustable)

Diameter of flame temperature measuring probe: 1.5mm

The temperature of the flame: (800 ± 50) ℃ at a height of (20 ± 2) mm from the top of the burner

Distance between top of the burner and lowest point of the mask: (20 ± 2) mm

Adjustment range of burner height: 30mm

Thickness of the metal mold: 2 ~ 3mm, flame resistant.

Timer of burning time and smoldering time: 0-99.99 seconds, accuracy: ± 0.1 seconds

Gas: Propane gas

Weight: 100kg

Power supply: AC220V, 50Hz, 50W
