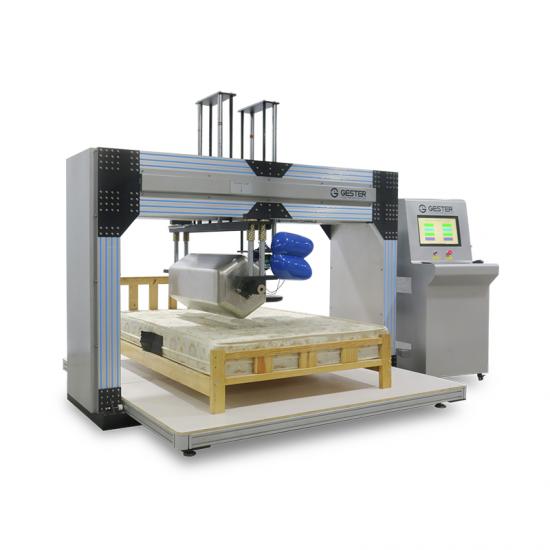

GESTER GT-LA08B Mattress Comprehensive Performance Tester

Controller: Computer Control

Motor: Servo Motor

Power sensors: 5000N, American Celtron

Durability test:

• Cylinder Shape: hexagon

• Cylinder Length: 36±3in(915±75mm)

• Cylinder Weight: 240±10Lb(109±4.5kg)

• Diameter of roller: 17±1in(430±25mm)

• Test speed: 0-20 cpm (adjustable)

• Stroke length: 0--1900mm

Hardness value & Firmness rating test & Height loss test:

• Pressure plate diameter: ￠355 mm

• Pressure plate spherical radius: R800 mm

• Test speed: 0.001--500 mm/min

Bed edge durability test:

• Test load: 1000 N

• Test cycles: 5000 cycles

• Maintain time: 3±1s

Power supply: 1∮, AC 220V 50/60Hz

Dimension (W x D x H): 380 x 250 x 180 cm

Weight (Kg): ≈1200Kg

Standards: ASTM F1566 ,BS EN 1957, EN 1725,QB/T 1952.2,

Standard accessories:

• ASTM hexagon Roller

• Hardness loading pad

Option accessories:

• EN Round Roller

• Edge loading pad
