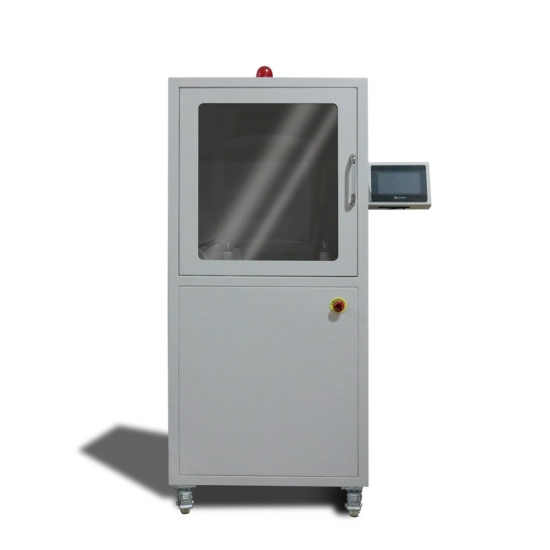

GESTER GT-KB42B Footwear Electric Shock Resistant Tester (AC: 0~30KV)

Determine dielectric of various insulation shoes

Voltage increasing rate: Increasing 1kv/sec,when reaching 75% of set voltage, the speed will switch to 100 v/sec

Output voltage range: AC: 0~30KV

Leakage current range: AC: 20mA

Transformer capacity: 600VA

Test time: 0.0s～99s

Test space(L*D*H): 58 x 38 x 54cm

Power supply: 1∮AC 220V 50/60HZ

Dimensions (W×D×H）: 121cm x 48cm x 75cm

Weight(Approx): 160kg

Standards Accessories:

• ￠3.5mm stainless steel ball 1pack

• 35KV insulated gloves 1set

• 35KV Insulated pad 1㎡

• Power line 1pc

Datasheet
