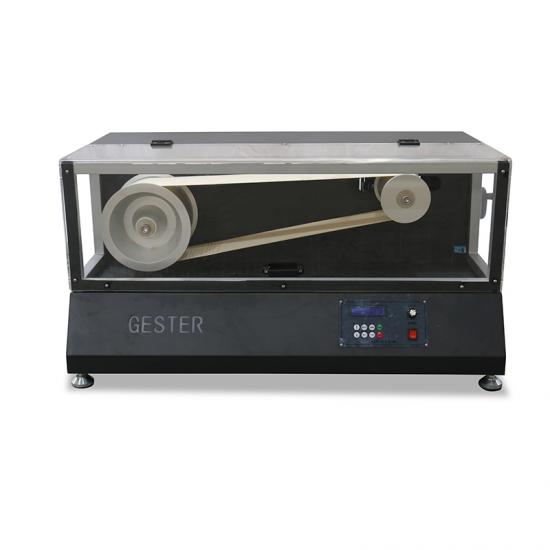

GESTER GT-KB35 Footwear Outsole Belt Flexing Tester (L:1930±50mm,W:140±5mm)

Canvas belt size: Length :1930±50mm; Width :140±5mm

Driven roller: Diameter: 225±5 mm; Width: 170±20 mm

Free roller 1 for typical sole units test: Centre Diameter: 90.0 ± 0.5mm; Ends Diameter: 87±1 mm; Width: 170±20mm

Free roller 2 for very flexible sole units test: Centre Diameter: 60.0 ± 0.5 mm; Ends Diameter: 57±1 mm; Width: 170 ± 20

Free roller 3 for very rigid sole units: Centre Diameter: 120.0 ± 0.5mm; Ends Diameter: 117±1 mm; Width: 170±2 mm

Belt rotate speed: 90 ± 8 CPM

Sampling: MAX.6 pcs

Counter: LCD~999,999

Power supply: 1∮ AC 220V 50/60HZ 3A

Dimensions(WxDxH): 131cm x 82cm x 69cm

Weight (Approx): 170kg

Standards: SATRA TM 133

Datasheet
