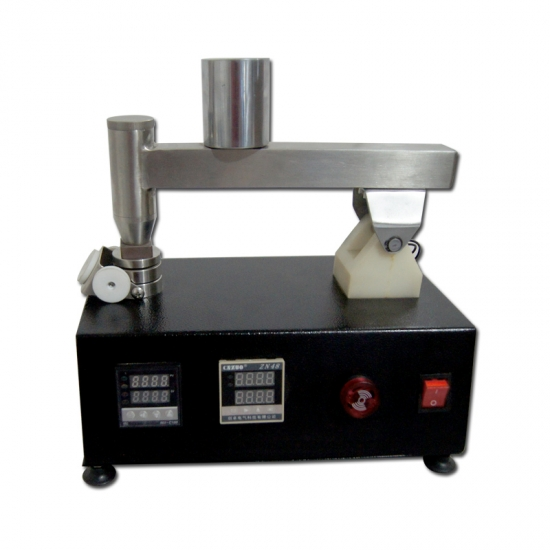

GESTER GT-KB24 Heat Resistance Contact Tester (RT-400℃)

Determine the ability of shoe materials to withstand the heat due to shoe making operation such as embossing, crimping, toe and seat flagging, hot blasting etc

Cylindrical copper body: Mass 200±20g, Lower end surface 25.5 x 25.5 mm

Metal heating block: 530±50g

Test pressure: 20±2kPa

Test Time: 60s

Temperature range: RT-400℃

Specimen size: 70 x 30mm

Power line: 1∮AC 220V 50/60HZ 3A

Dimensions( L x W x H): 300x180x300mm

Weight: 40 kg

Standards:

EN-344-1 section 5.18 ,

SATRA TM49

GB/T 20991 section 8.7 ,

AS/NZS 2210.2 section 8.7

ISO 20344 section 8.7 ,

BS 5131 Part2.11

Datasheet
