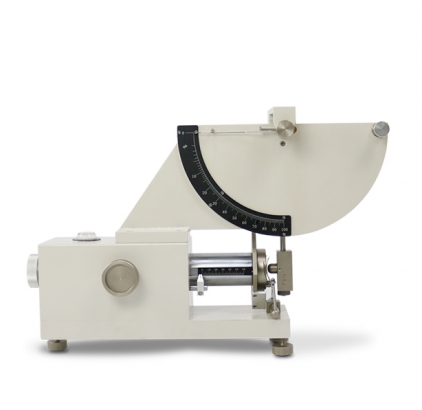

GESTER GT-KB18 Rebound Resilience Elasticity Tester (0.5J, 0.2J)

Measure the impact resistance of elastic material and flexible cellular materials

Impact energy: 0.5J, 0.2J

Range of display: 0-100% , resolution 1%

Impact angle: 90degree

Length of pendulum: 200 mm

Impact speed: 1.40 ~ 2.04 m/sec

Specimen thickness range: 0- 60 mm

Mobile shaft minimum scale: 1mm

Elastic material test striker:

Impact energy 0.5J

Hemisphere Dia. 15mm

Flexible cellular material test striker:

Impact energy 0.2J

Shape A, Hemisphere Dia. 30mm

Shape B, Cylinder Dia. 40mm, and round end radius 40mm

Dimension: 65 x 13 x 35cm ( L x W x H )

Weight: 42 kg

Standards: DIN 53512, DIN53573, ISO 4662, GB/T 1681
