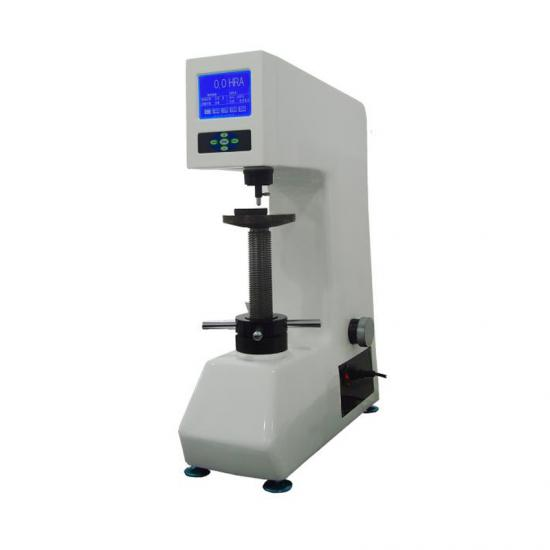

GESTER GT-HRS-150 Automatic Digital Rockwell Hardness Tester (60kgf (588N) 100kgf (980N) 150kgf (1471N))

Is suitable for the hardness test for ferrous metals, nonferrous metals and non-metallic materials

Initial test force: 10kgf(98.07N)

Test Force: 60kgf (588N) 100kgf (980N) 150kgf (1471N)

Indenter specification: Diamond conical Rockwell indenter, φ1.5875mm steel ball indenter, or other diameters (optional)

Rockwell scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK

Test Range:

HRA: 20-88 HRB: 20-100 HRC: 20-70 HRD: 40-77

HRE: 70-100 HRF: 60-100 HRG: 30-94 HRH: 80-100

HRK: 40-100 HRL: 50-115 HRM: 50-115 HRR: 50-115

Hardness read: LCD digital display screen

Data output: Built-in printer RS-232 interface

Maximum specimen height: 170mm

Head - Ectotheca distance: 165mm

Power: AC220V + 5%, 50 ~ 60Hz

Dimensions (mm): 510X212X730mm

Weight: About 85Kg

Standards: GB/T230.1, GB/T230.2, JJG112, ASTM E18, ISO 2039-2

Datasheet
