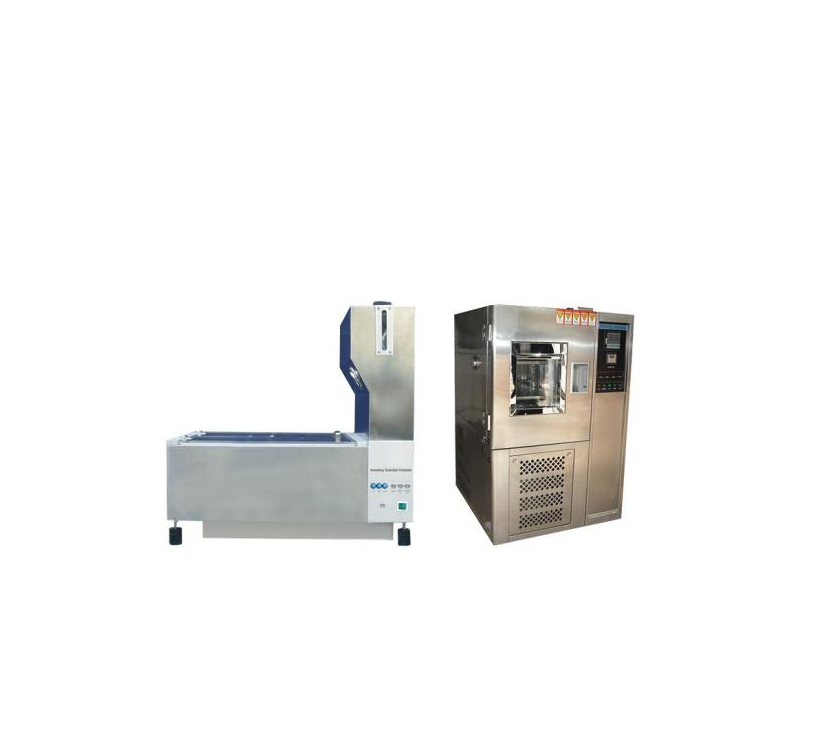

GESTER GT-C98 Sweating Guarded Hot Plate (0~1000 m2.Pa/W)

Thermal Resistance (RCT) Range: 0.002-2.0 m2.K/W

Indication Error: ≤±2%

Repeatability Error: ≤ ± 2%

Resolution:0.0001 m2 .K / W

Dampness (Ret) Range: 0 ~ 1000 m2.Pa/W

Test Plate Temperature Range: 30°C-40°C Adjustable

Temperature Control Accuracy: ± 0.03 ℃

Temperature Resolution: ± 0.01°C

Power Supply: 1∮ AC 220V 50/60Hz

Speed Control Accuracy: ± 1%

Wind Speed Sensor Lifting Height: 0-50mm

Specimen Thickness: 0-50mm

Test Pleat Size: 250mm×250mm

Size for Specimen: 512mm×512mm

Width for Heating Protection Ring: 127mm

Outside Chamber Dimension: 1700x1350x1890mm(L×W×H)

Outside Chamber Weight: 250Kg

Power: 3 ∮AC380V±10%, 50/60Hz, 10KW
