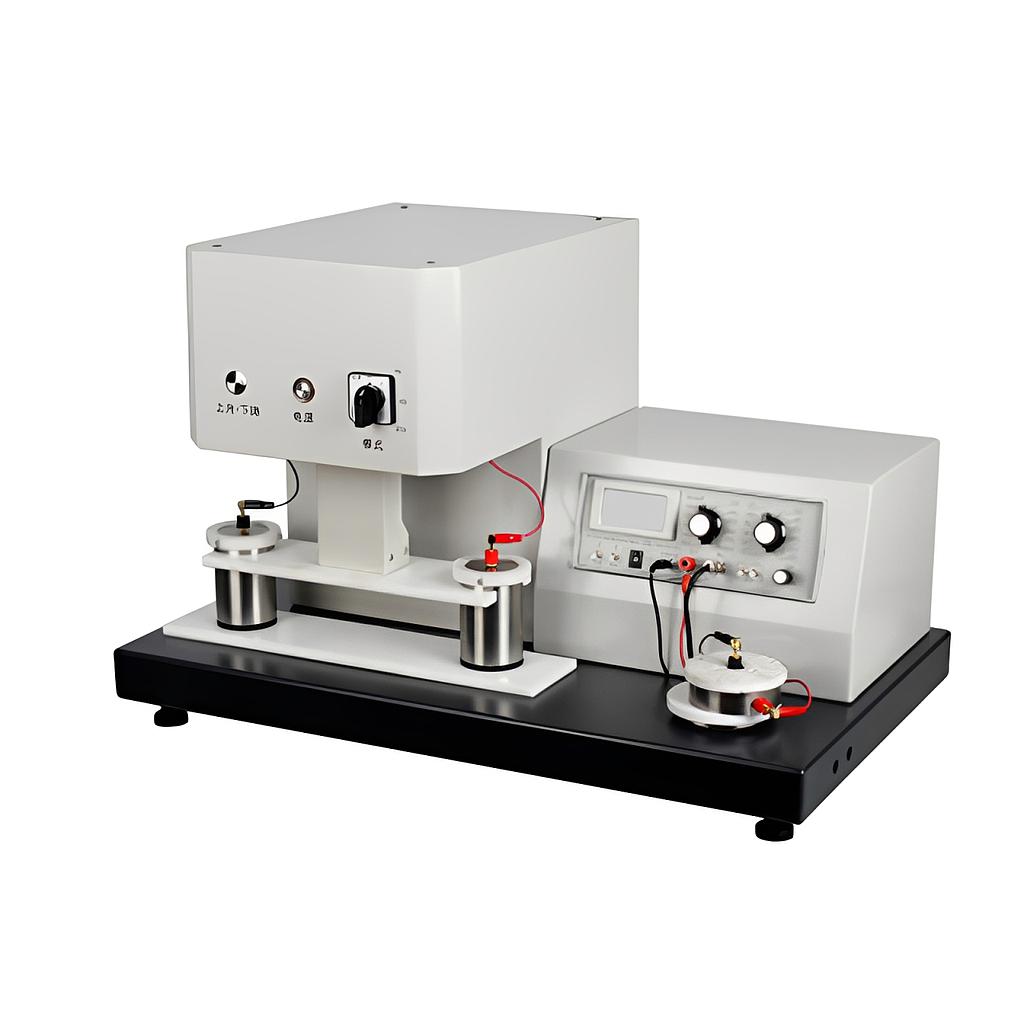

GESTER GT-C103 Fabric Material Resistivity Tester ((0–2)×10¹⁵ Ω, 100–1000 V)

Model: GT-C103

Measuring range: (0～2)×1015Ω

Testing voltage: 100V, 250V, 500V, 1000V

Laboratories environment: Temperature: 20℃±2℃; Humidity: 35%±10%RH

Zero drift:＜±5% within 15～105 seconds under stable operating voltage and without signal input

Basic error of resistance: measurement ≤±10%

Power Supply: 1∮ AC 220V 50/60Hz or DC 8.5～12.5V (8 No. 1 batteries)

Weight: 46kg

Dimensions: 475mm×780mm×500mm

Digital display, bridge-type measurement circuit;

Pneumatic lifting, easy operation;

Two power supply methods: battery or external power supply;

Automatic reading lock;

Point-to-point testing, manual or automatic electrode loading selectable.
