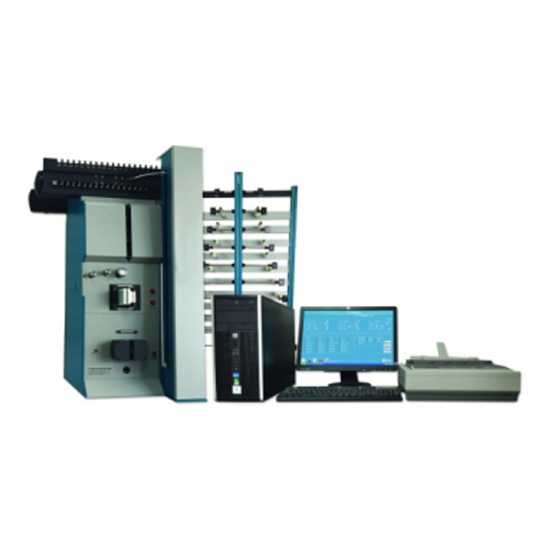

GESTER GT-A14HD Automatic Yarn and Sliver Evenness Tester

Capacitance monitor tank: 4pcs

Measurement range: 4tex-12ktex

Testing speed: 4, 8, 25, 50, 100, 200, 400, 800 m/min

Testing time: Freely setting between 10Sec20min

CV(%) or (U%) testing range: 0.2%-100%

Variation length curve: Cutting length 1cm ~1500m

Output 3 mains 12 gears defect value at the same time: Thin: -30%, -40%, -50%, -60%; Thick: +35%, +50%, +70%, +100%; Neps : +140%, +200%, +280%, +400%

Wave spectrogram: 170pcs Channel

Wave length coverage: 1cm~2950m

Linear density frequency distribution diagram: -100% ~ +100%, +100% ~ +400%

4 mains DR% value: DR(1m, +5%); DR(1m, -5%); DR(20cm, +35%); DR(20cm, -30%)

Single unit test time: <=20, single unit can test two pieces

Statistics: The same piece can reach data statistics 10 units 200pcs cop

Power supply: 1 phase AC 220V 50/60HZ

Standard accessories: Creel, Computer, Data cable, Printer
