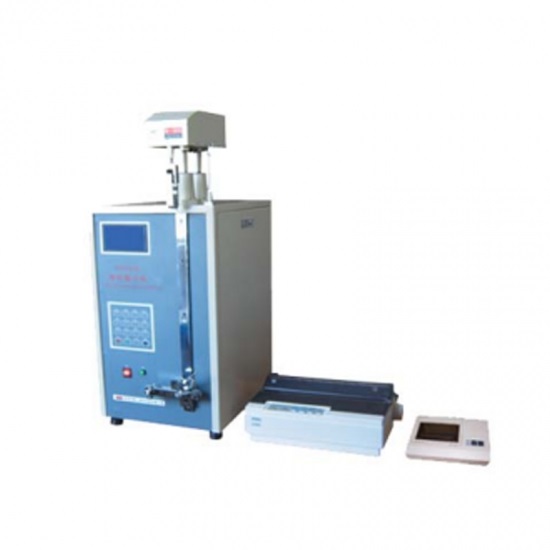

GESTER GT-A02B Table Single-Yarn Strength Tester

Working Patton: Computer control, digital display test data and test, print test results

Testing range: 0~1000CN, 0~3000CN, 0~5000CN

Measuring accuracy: ≤+0.2%F.S

Elongation range and accuracy: 400±1mm

Length of sampling: 100mm, 250mm, 500mm

Pr-tension: 0~150CN (Adjustable)

Clamp holder: Self-tightening

Tensile speed: Constant speed: 100mm/min, 250mm/min,500mm/min, Adjustable: 50- 1000mm/min

Dimensions: 370X530X930mm (LXWXH)

Weight: 60kg

Power supply: Ac 220V 50HZ

Applicable range: Test of yarn breaking strength, rupture elongation and elongation at break
