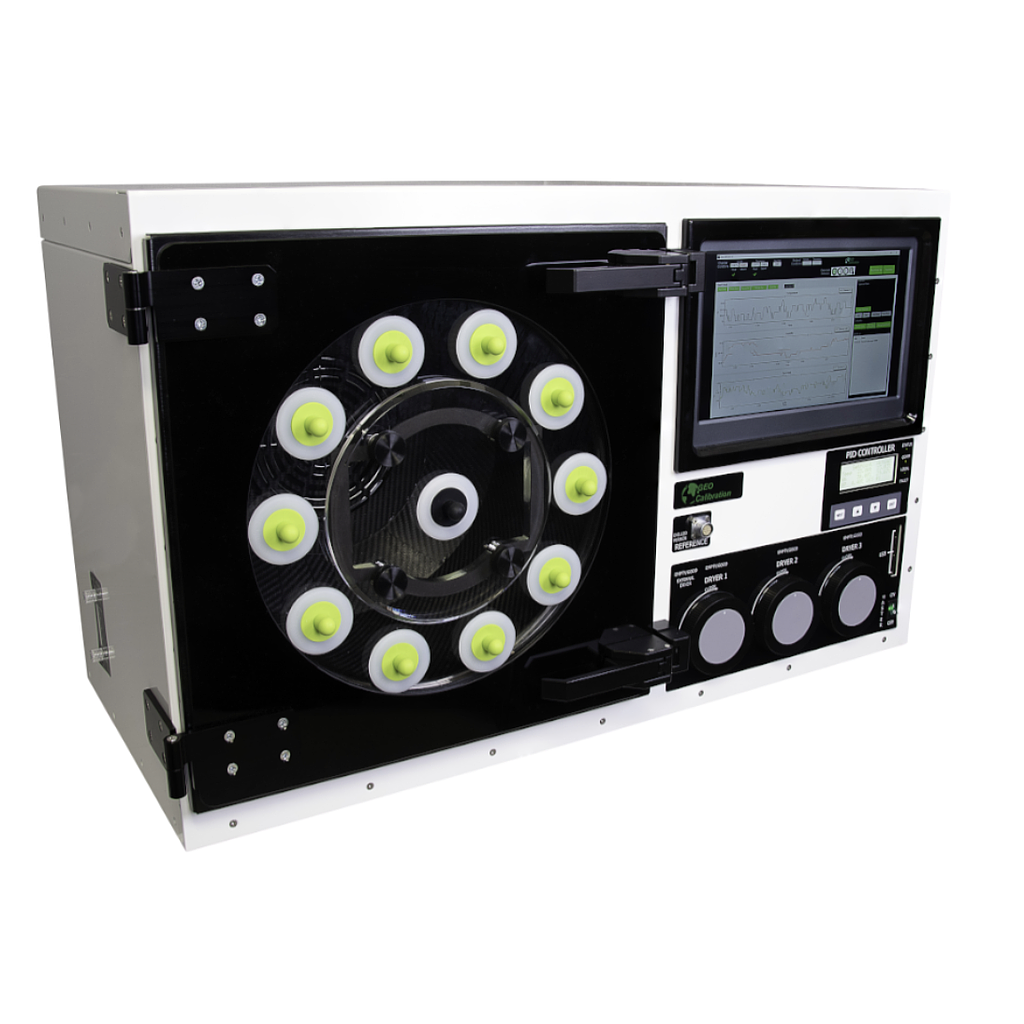

GEO Calibration Hygro Max Humidity Generator (0°C- 60°C, 1 % ~ 95 % RH)

OPERATING AMBIENT CONDITIONS

Temperature : 18 °C to 28 °C

Humidity: Up to 80 % RH

CONTROLLED RANGE

With dry nitrogen option

With ultrasonic option

Temperature 0 °C to 60 °C

Humidity @18 °C : 1 % to 95 %RH

Humidity @30 °C : 1 % to 80 % RH

Humidity @23 °C : 1 % to 99 %RH

Humidity @40 °C : 1 % to 60 % RH

Humidity @28 °C: 1 % to 95 % RH

Humidity @50 °C : 1 % to 50 % RH

CALIBRATION SYSTEM ACCURACY

Temperature: ± 0.1 °C Typically ± 0.05 °C Based on Probe Accuracy

Humidity: ± 0.50 % RH Or Better Typically ± 0.30 % Based on Probe Accuracy

Controller type : PID Controller

UNIFORMITY

Temperature : 0.10 °C

Humidity: 0.30 % RH @ 23 °C

STABILITY

Temperature: 0.05 °C

Humidity : 0.10 % RH @ 23 °C

RESOLUTION : DISPLAY

Temperature : 0.01 °C

Humidity : 0.01 % RH

Dew Point: 0.01 °C (Calculated)

RAMP / SOAK RATE OF CHANGE

Depends on ambient and desiccant conditions

Temperature

High → Low 0.50 °C / minute *Typical (Based on Desiccant)

Low → High 1.00 °C / minute *Typical (Based on Desiccant)

Humidity

High → Low 1.00 % RH / minute *Typical (Based on Desiccant)

Low → High 2.50 % RH / minute *Typical (Based on Desiccant)
