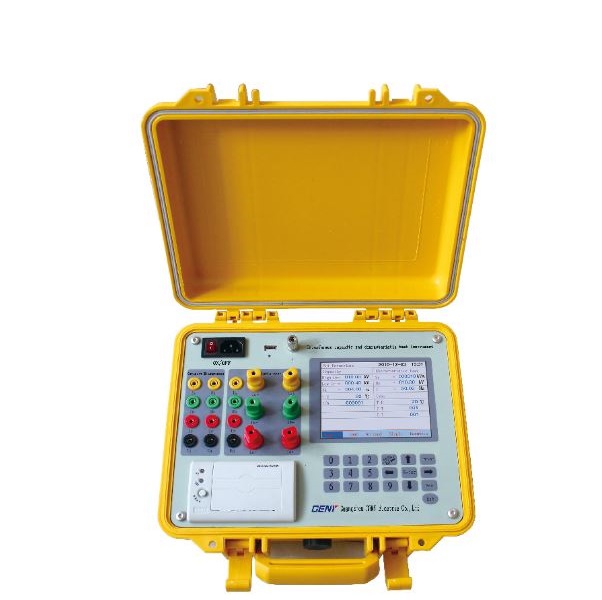

GENY YCTC-9901 Transformer Capacity Tester (0~10V, 0~10A)

Built-in output power supply used for capacity test:

- Voltage output range: 0~10V

- Current output range: 0~10A

External power supply for test of the transformer characteristics:

- Voltage measurement range: 0-750V

- Current measurement range: 0-80A

Measurement accuracy

- Voltage, current, frequency: ±0.2%

- Power: ±0.2% (CosФ>=0.3)

±0.5% (0.1<CosФ<=0.3)

±1.0% (0.02<CosФ<=0.1)

- Operating temperature: -10℃~=40℃

- Charging power supply: AC176V-264V, 50Hz

Insulation & power frequency withstand voltage

- Insulation between Volt/cur. input and case: ≥100MΩ

- Power Freq, withstand between signal input and case: 2kV for tests lasting 1 minute

- Dimension(LxWxH): 320x240x130

- Weight: 5.1kg
