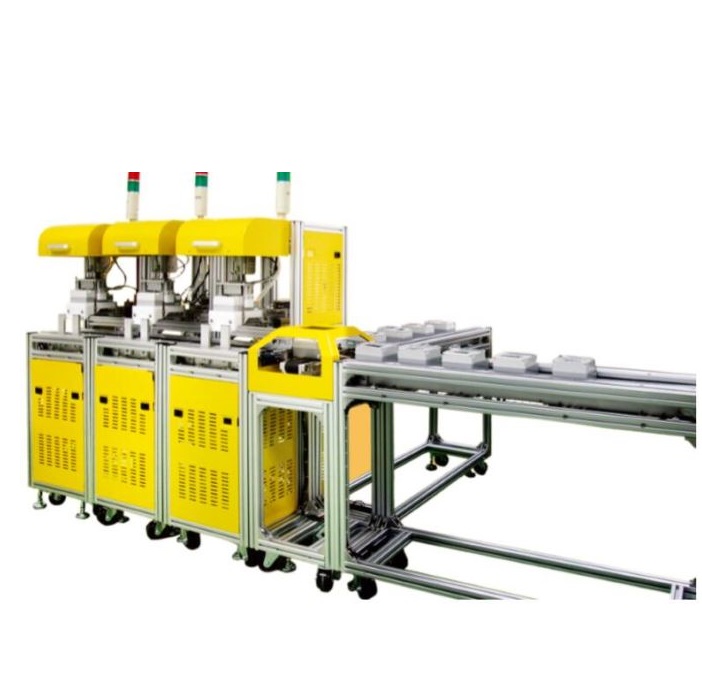

GENY YCATS Automatic Energy Meter Test System For Mass Production (Max.25VA)

Voltage

- Test voltage output: 0V-480V

- Power of the voltage output: Max.25VA

- Resolution: 1mV

- Setting accuracy: 0.05% at 50-400V

- Stability: 0.03%/h (integration time 150s)

- Distortion factor: <0.2%for linear resistance load

- Harmonic: 2nd-21st free programmable

Current source

- Test current output: 1mA-100A

- Power of the current output: Max.100VA

- Resolution: 0.002mV

- Setting accuracy: 0.05% at 1A-100A

Phase angle

- Range: 0~360°

- Resolution: 0.001°

- Setting accuracy: 0.005°

Frequency:

- Range: 45Hz-65Hz

- Resolution: 0.001Hz

Pulse output: High frequency output: 1.5625x105Hz

Pulse input:

- Input channel: 2

- Input frequency: Max.100kHz
